Actuator Test Reference Table

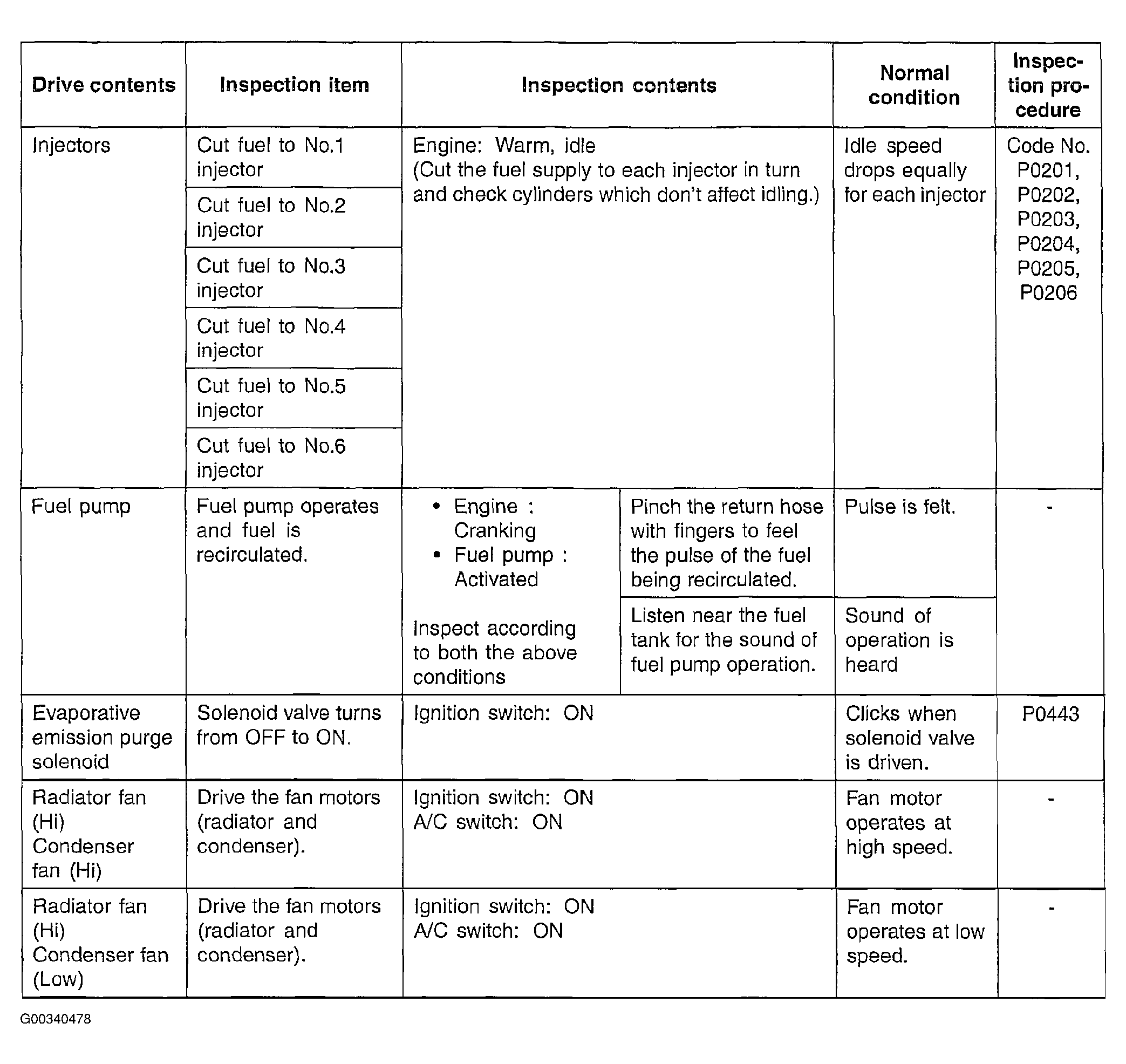

Fig 1: Identifying Actuator Test Reference Table

G00340478

Courtesy of KIA MOTORS AMERICA, INC.
