Harness Inspection Procedures

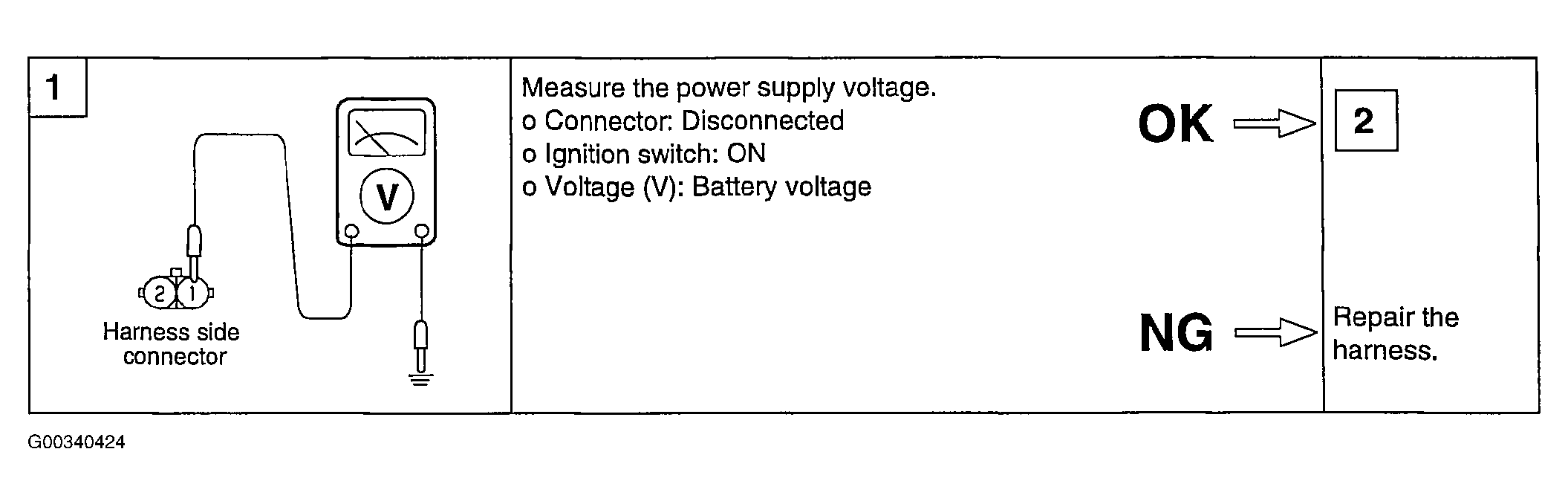

Fig 1: Fuel Injector Harness Inspection Procedure No. 1
G00340424Courtesy of KIA MOTORS AMERICA, INC.

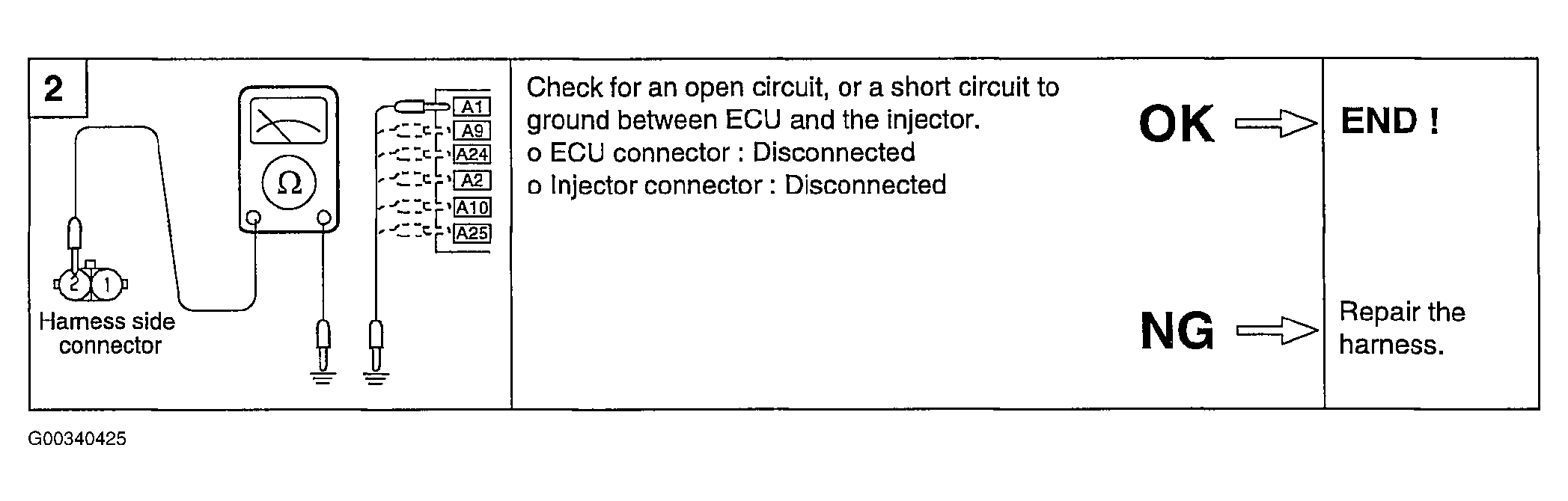

Fig 2: Fuel Injector Harness Inspection Procedure No. 2
G00340425Courtesy of KIA MOTORS AMERICA, INC.
