Test 3: Engine Will Not Start

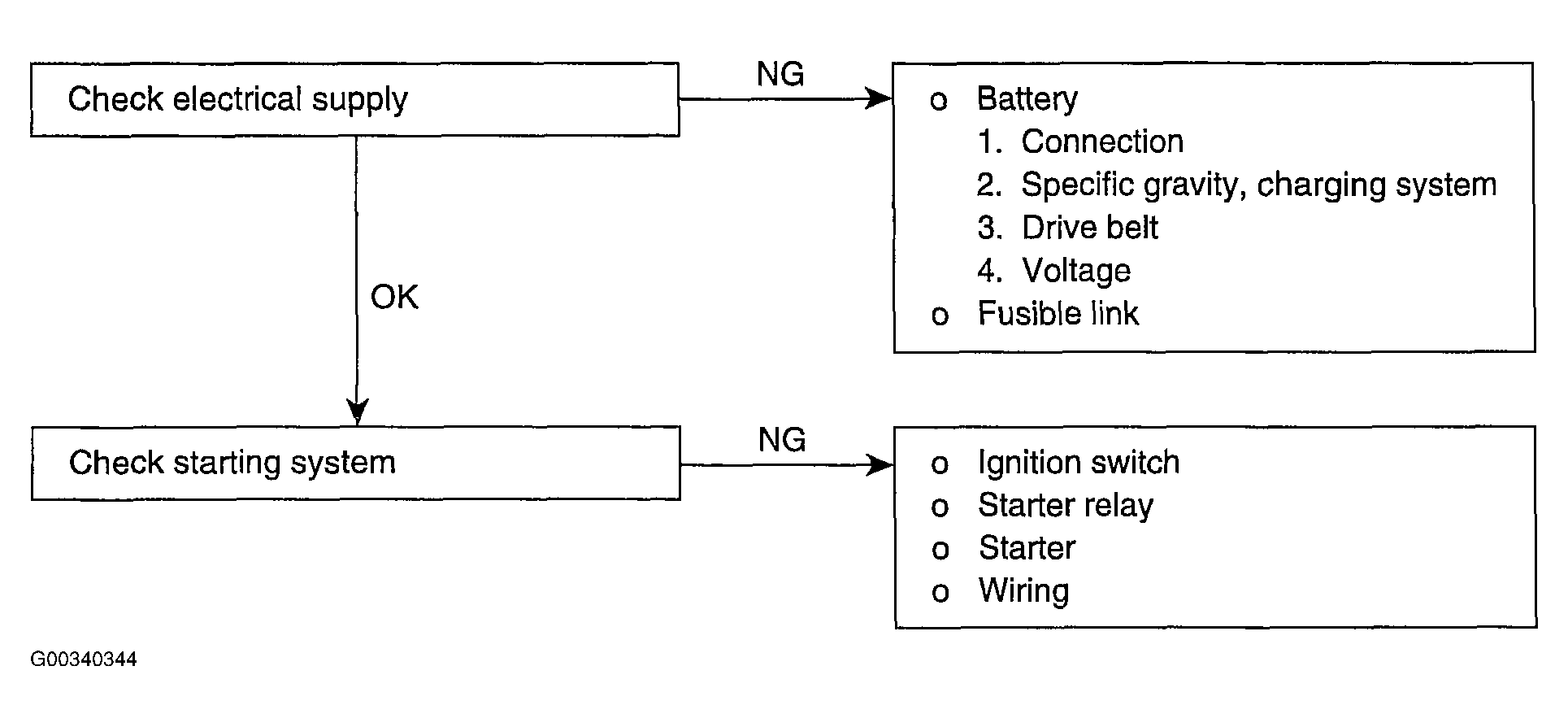

Fig 1: Test 3: Diagnostic Flow Chart

G00340344

Courtesy of KIA MOTORS AMERICA, INC.
