Crankcase Emission Control System: Components

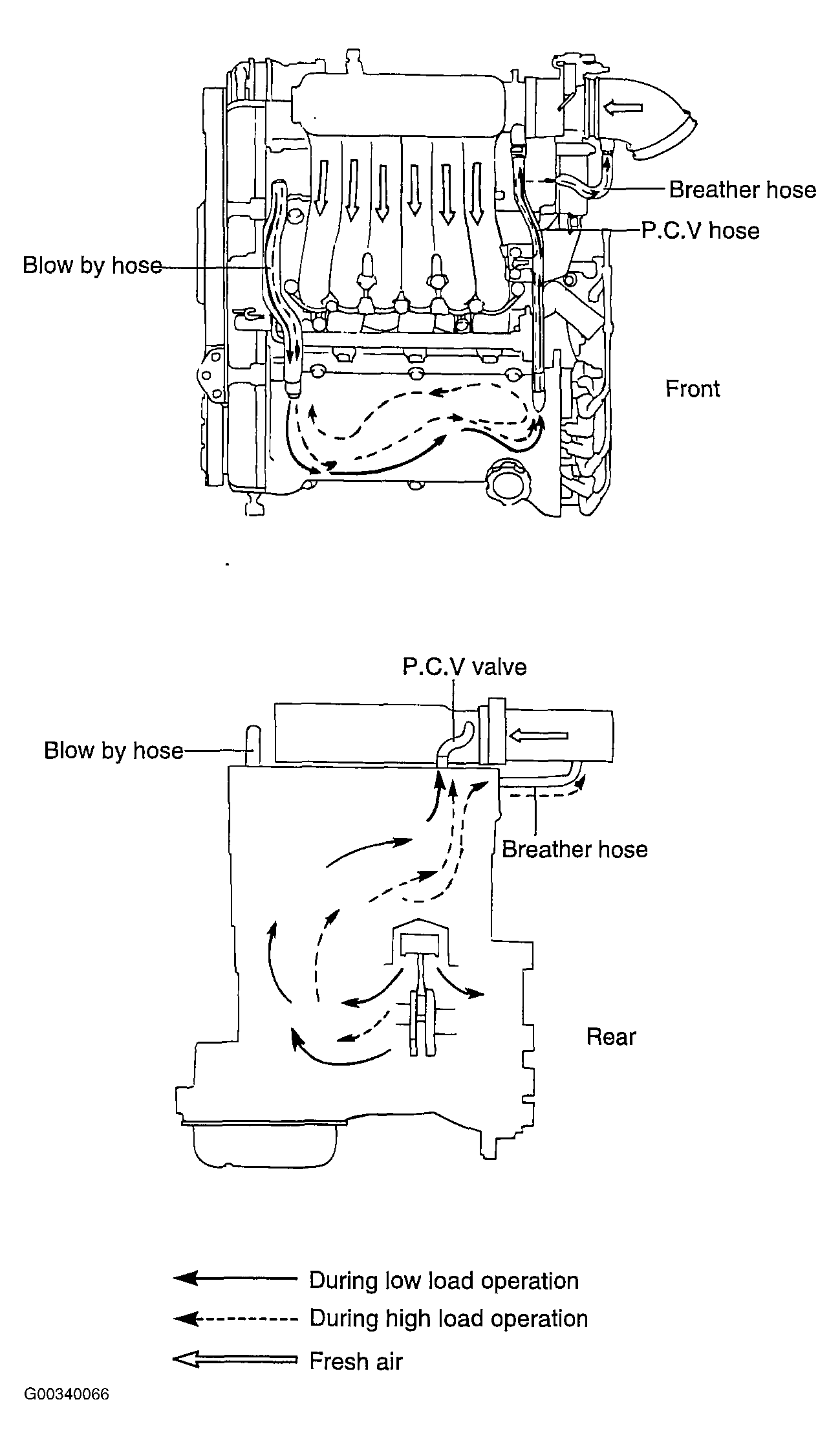

Fig 1: Identifying Crankcase Emission Control System Components & Flow Paths

G00340066

Courtesy of KIA MOTORS AMERICA, INC.
