Charging Systems: Battery: Inspection

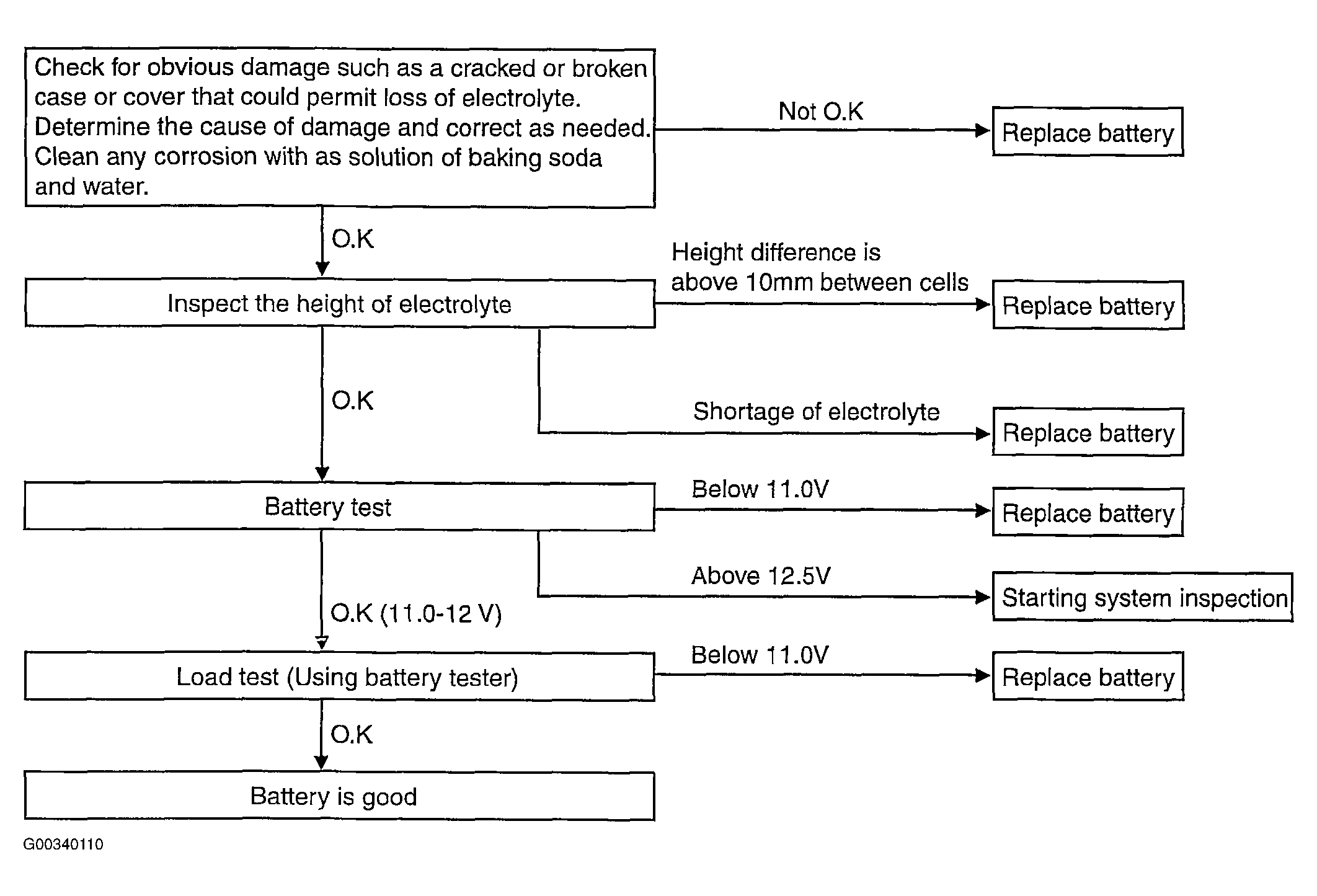

CHECKING FLOW

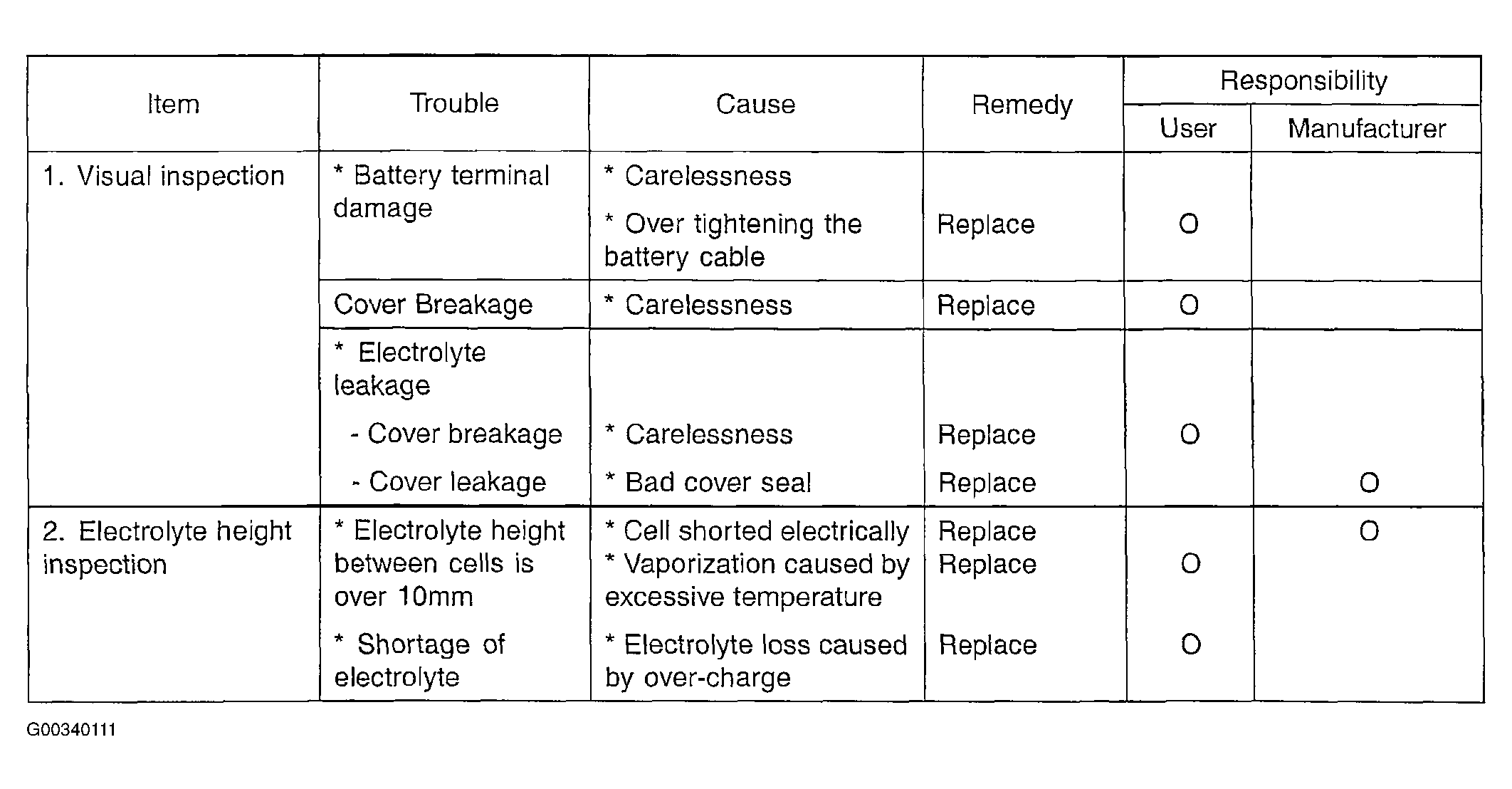

Fig 1: Visual Inspection (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Visual Inspection (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

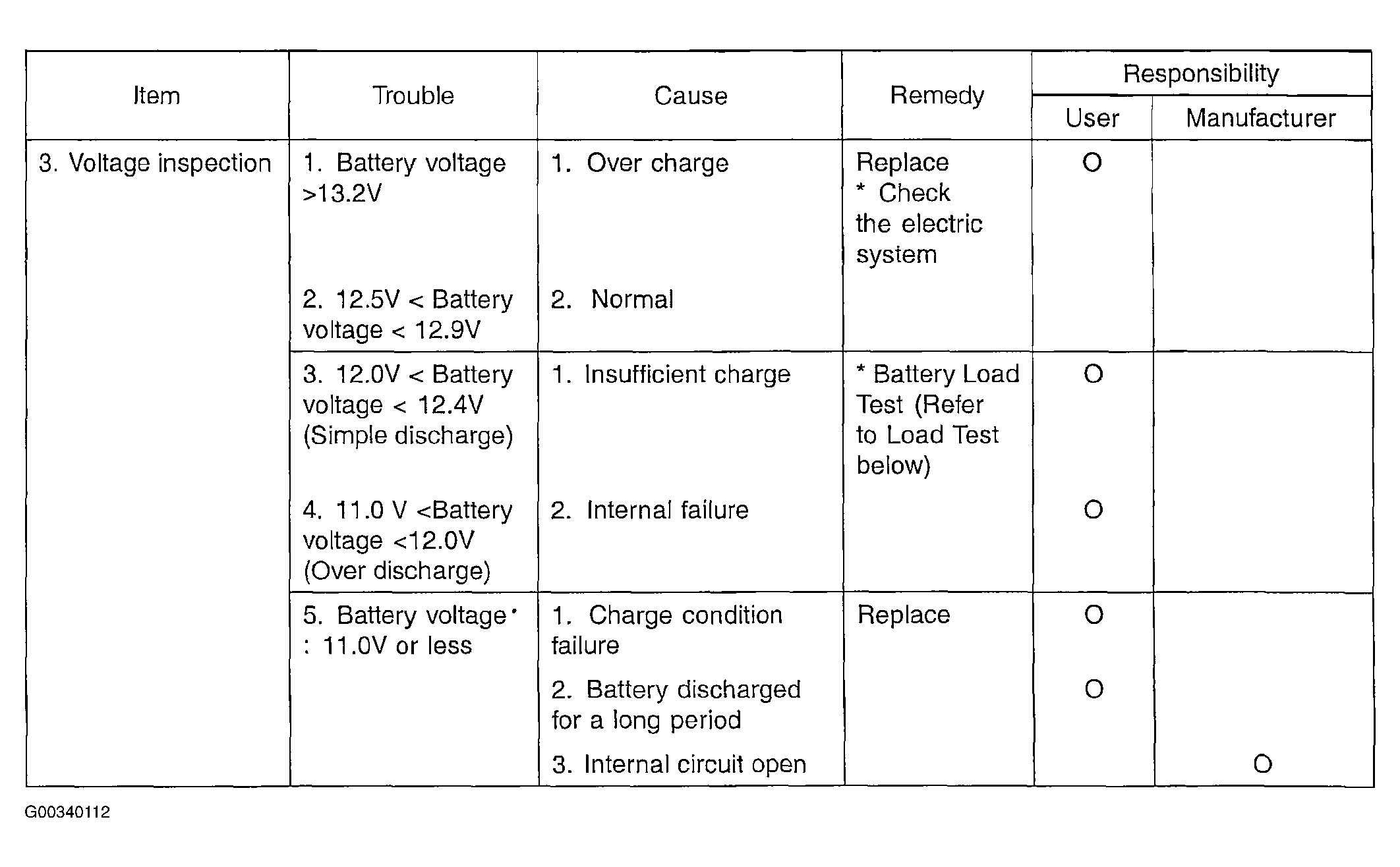

LOAD CHECKING

Fig 3: Load Checking Chart
Courtesy of KIA MOTORS AMERICA, INC.
LOAD TEST
1. When discharging the battery during 15 seconds at half currency of Cold Cranking Power (CCP), the voltage of the battery should be as shown below.

  Fig 4: Cold Cranking Voltage Chart
  Courtesy of KIA MOTORS AMERICA, INC.
2. When the voltage is not within specification, repeat the load test again, and recharge.
3. If the battery is left alone for 2 hours after recharging and its output is over 12.5V, and the voltage after a load test is over the standard value, the battery can be used.
