Audio System: Notes

There are six areas where a problem can occur: wiring harness, the radio, the cassette tape deck, the CD player, the speaker, and antenna. Troubleshooting enables you to confine the problem to a particular area.

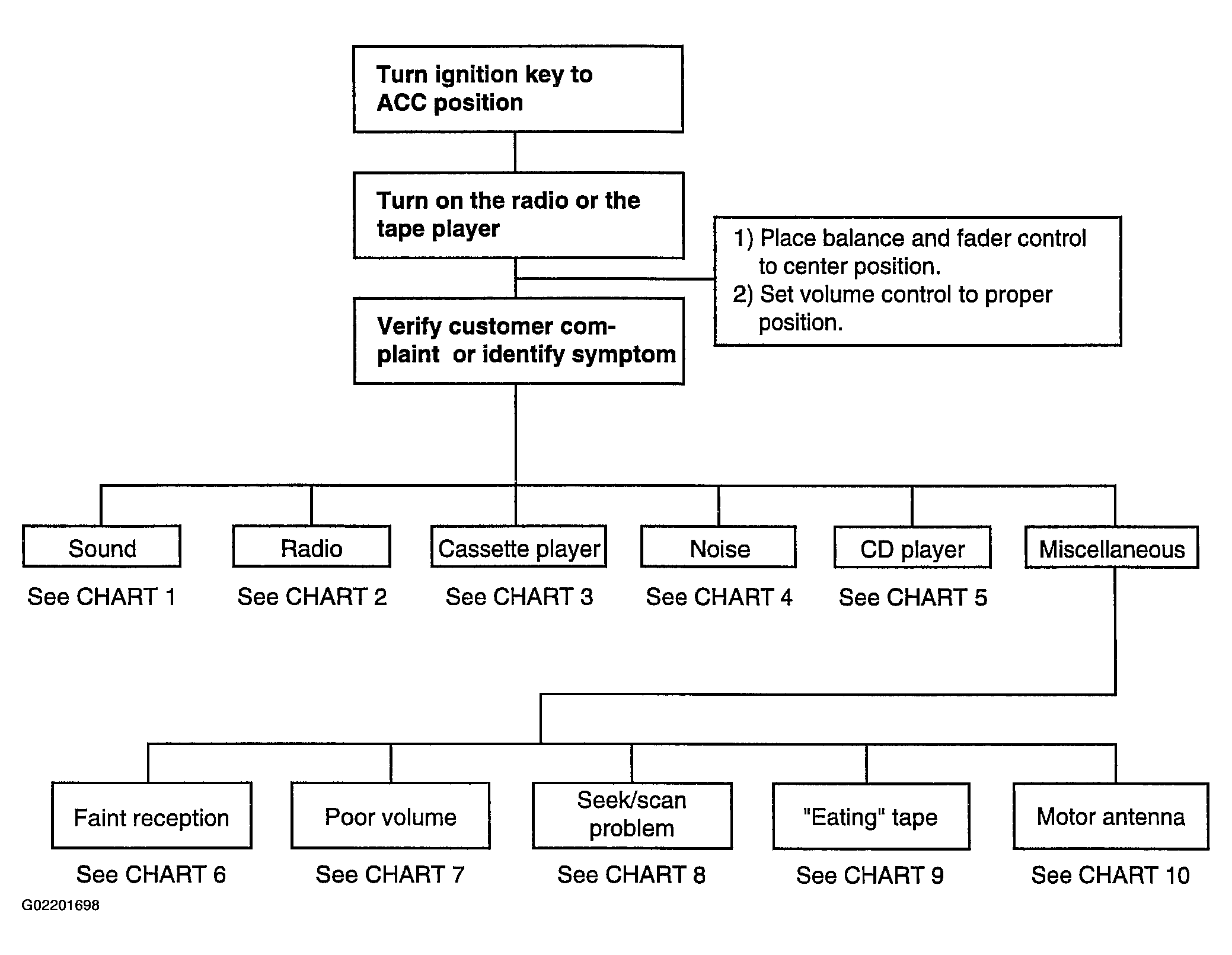

Fig 1: Troubleshooting Audio System Procedure Chart
G02201698Courtesy of KIA MOTORS AMERICA, INC.
