Audio Unit
>>
Premium Audio System
Premium Audio System

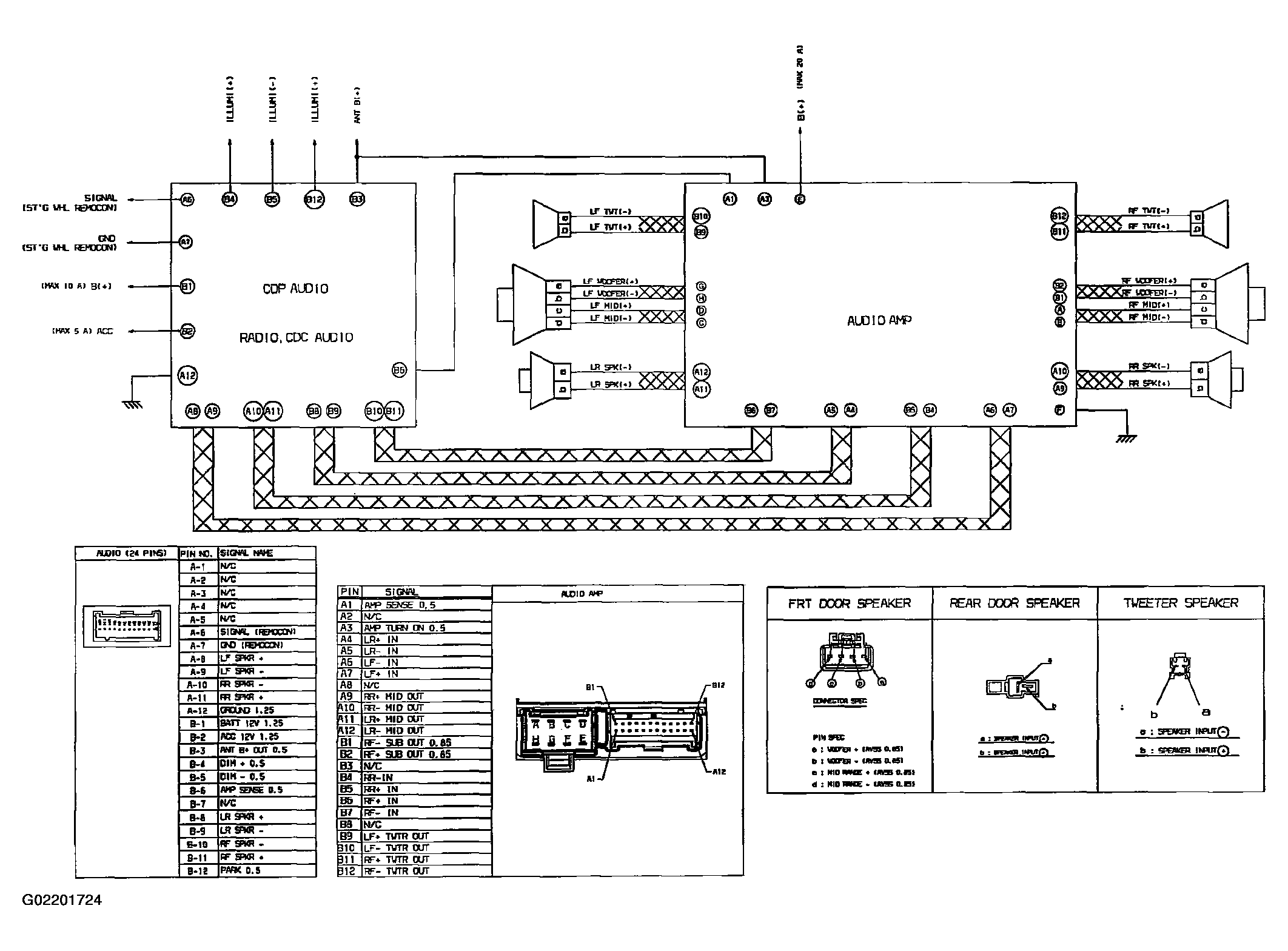

Fig 1: Identifying Premium Audio System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

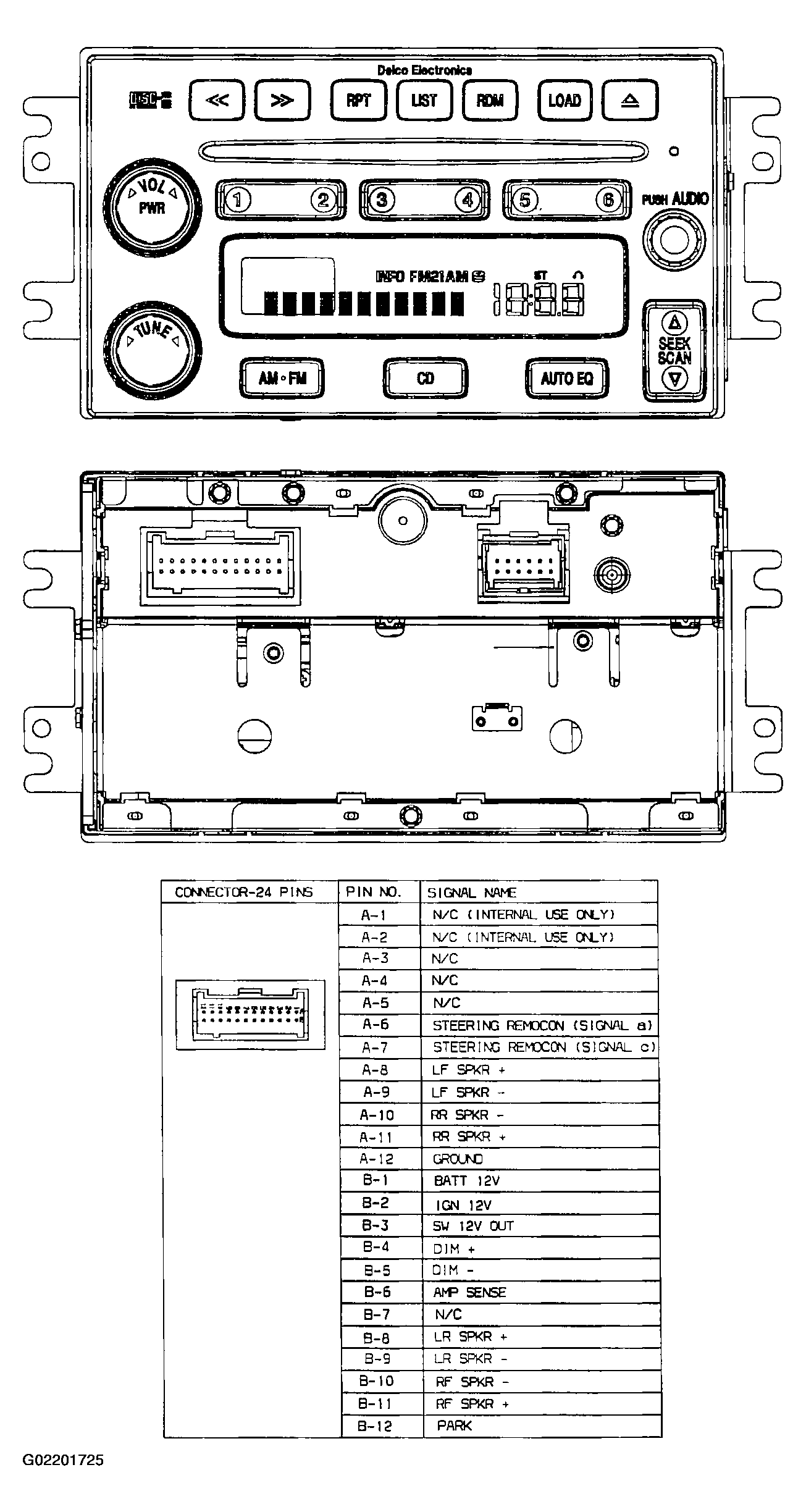

Fig 2: Identifying Premium Audio System Connector Terminals (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

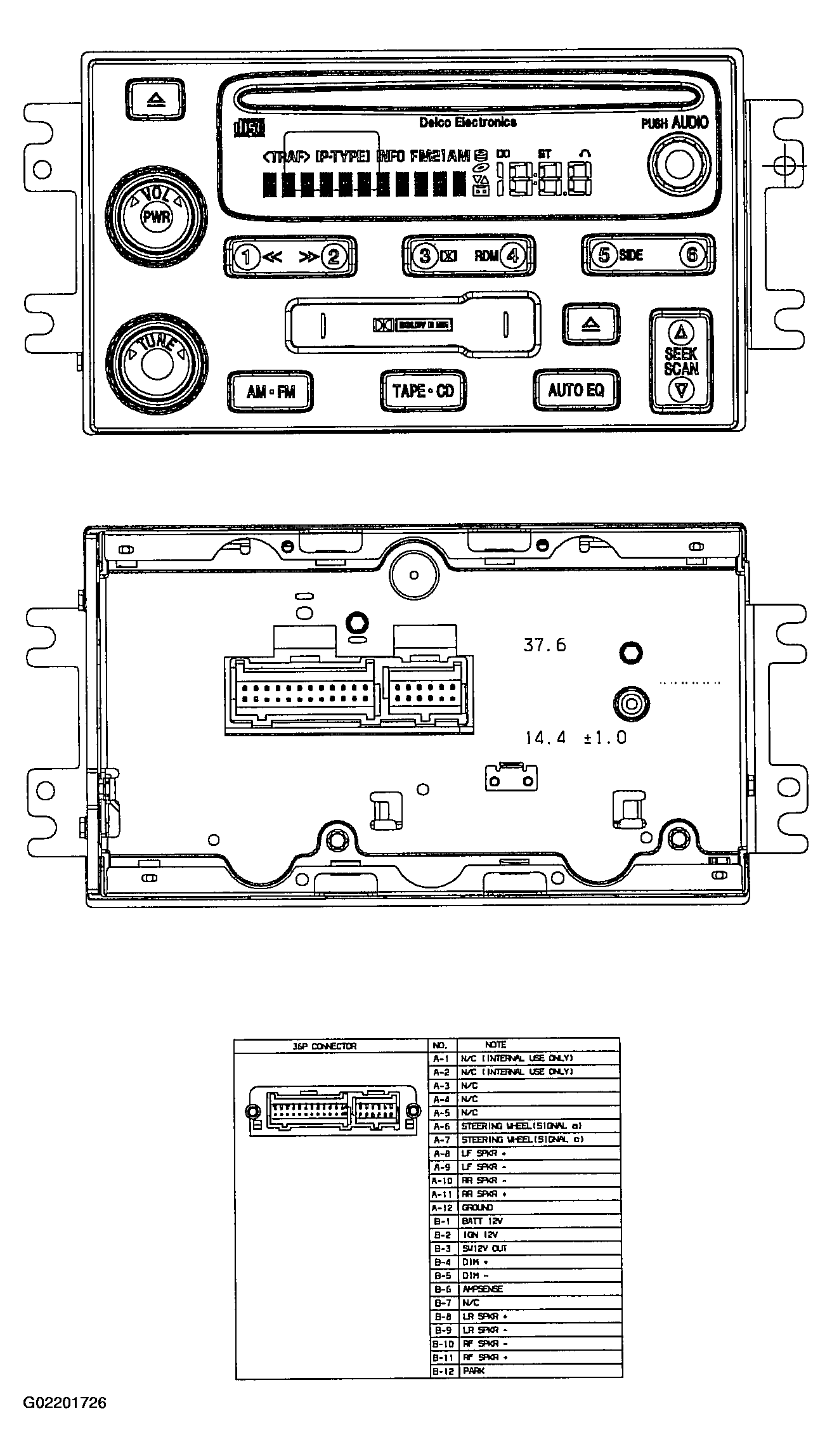

Fig 3: Identifying Premium Audio System Connector Terminals (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
