Test 6: Engine Hesitates Or Accelerates Poorly

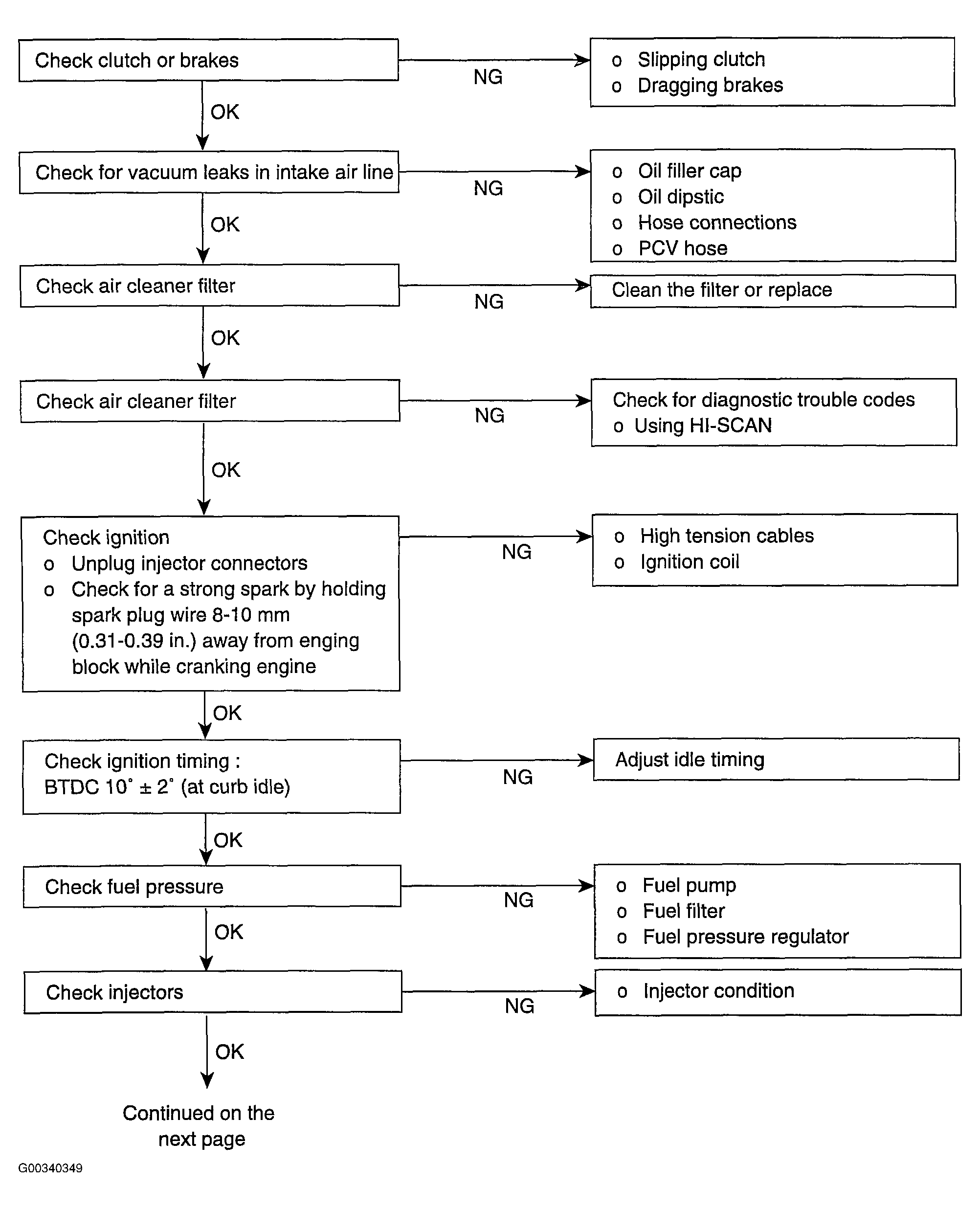

Fig 1: Test 6: Diagnostic Flow Chart (1 Of 2)
G00340349Courtesy of KIA MOTORS AMERICA, INC.

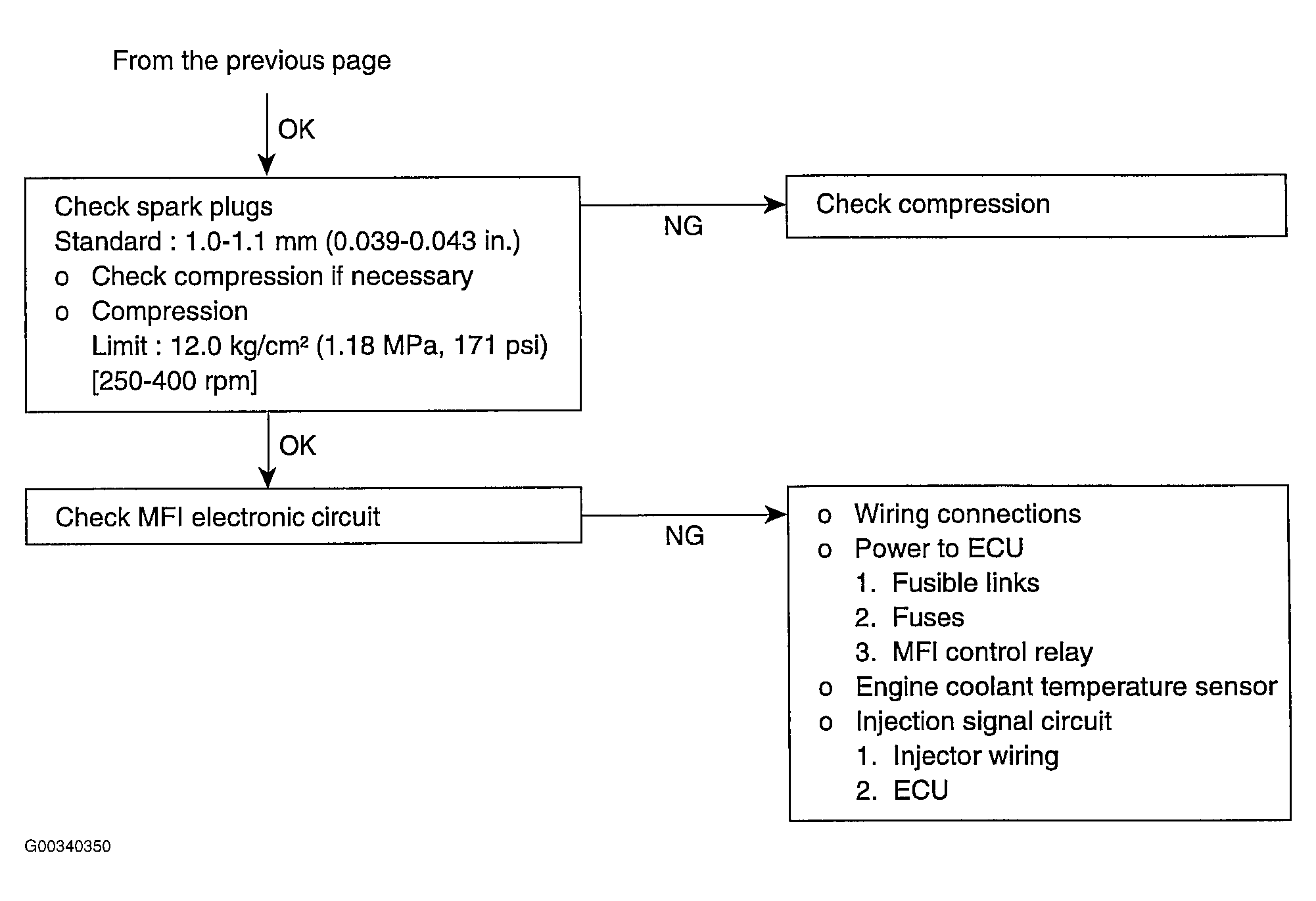

Fig 2: Test 6: Diagnostic Flow Chart (2 Of 2)
G00340350Courtesy of KIA MOTORS AMERICA, INC.
