Monitor Scantool Data

  1. Connect scantool to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "O2 OUT VOLT (B1S2)" parameter on scantool.
    1. Specification: Appox. 0.6~0.7 Volts

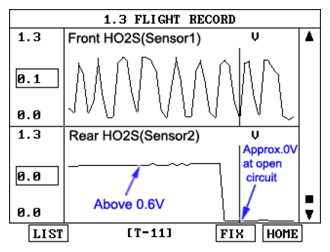

      Fig 1: Scantool Screen Display - O2 OUT VOLT (B1S2) Parameter
      G07703019
  4. Is the sensor's signal near the specification?

    YES

    1. Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector.
    2. Fault was repaired and ECM memory was not cleared.
    3. If the problem works out, Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    1. Go to "Inspection & Repair" procedure.
