Kia
>>
2004
>>
Sorento EX, 4WD, Part Time
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
3.5L Engine
>>
General Information
>>
Special Service Tools
Special Service Tools

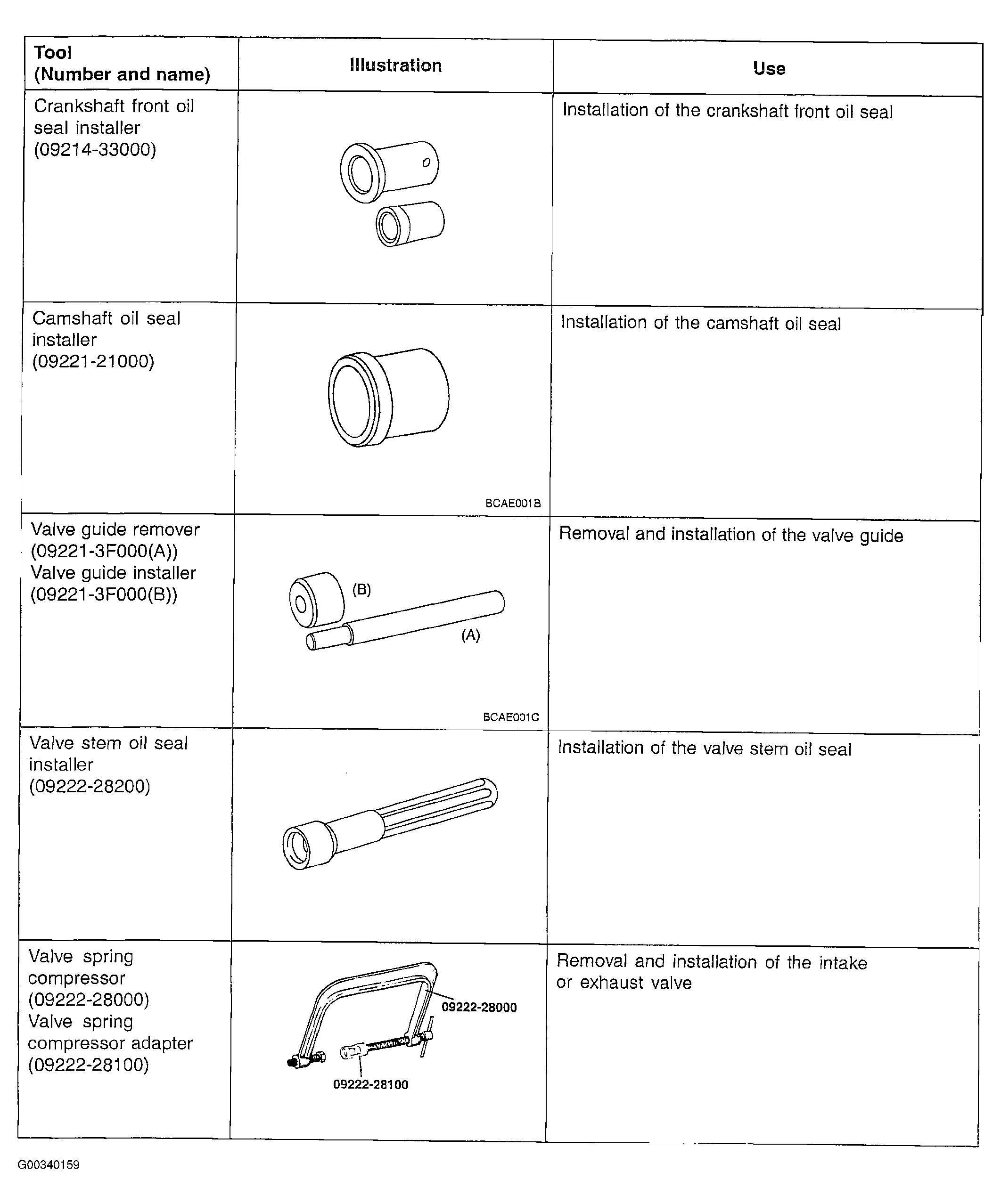

Fig 1: Special Service Tools (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

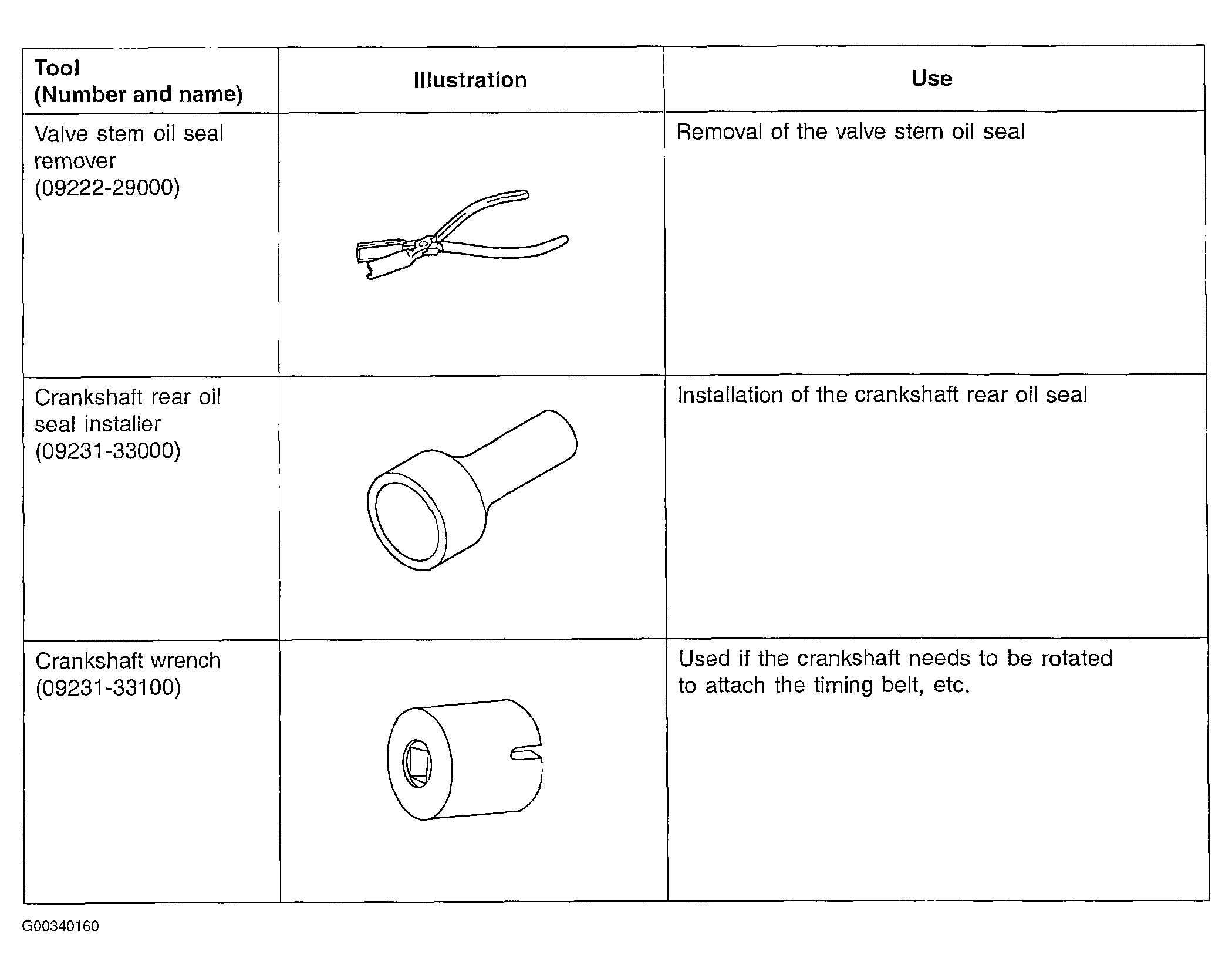

Fig 2: Special Service Tools (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
