Retainer Lock

  1. Compress the valve spring using special tool. (09222 - 28000, 09222 - 28100)
  2. Remove the retainer lock.

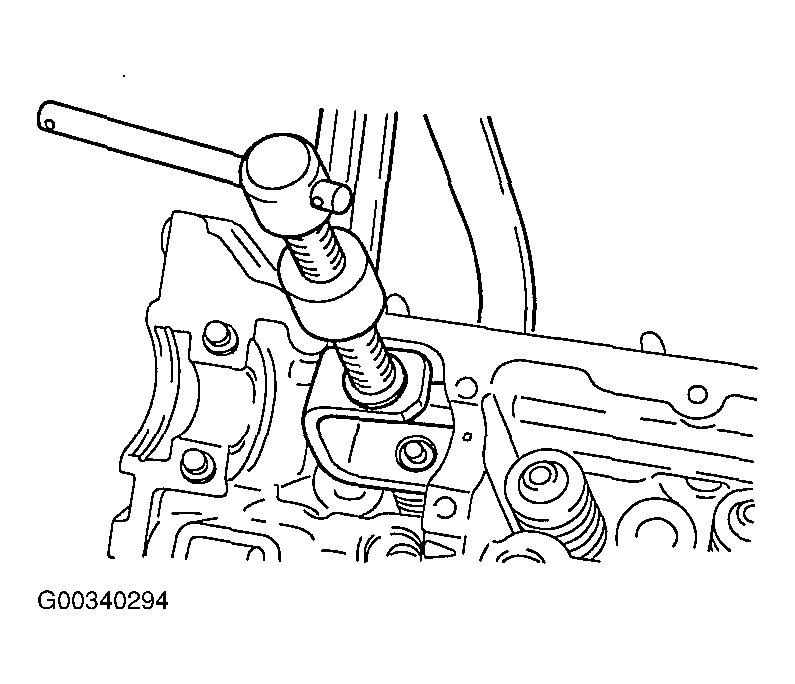

Fig 1: Using Special Tool, Compress Spring & Remove Retainer Locks
G00340294Courtesy of KIA MOTORS AMERICA, INC.
