Home >> Kia >> 2004 >> Sorento EX, 4WD, Part Time >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 3.5L Engine >> Cylinder Head Assembly >> Camshaft >> Components And Components Location >> Components

Components And Components Location: Components

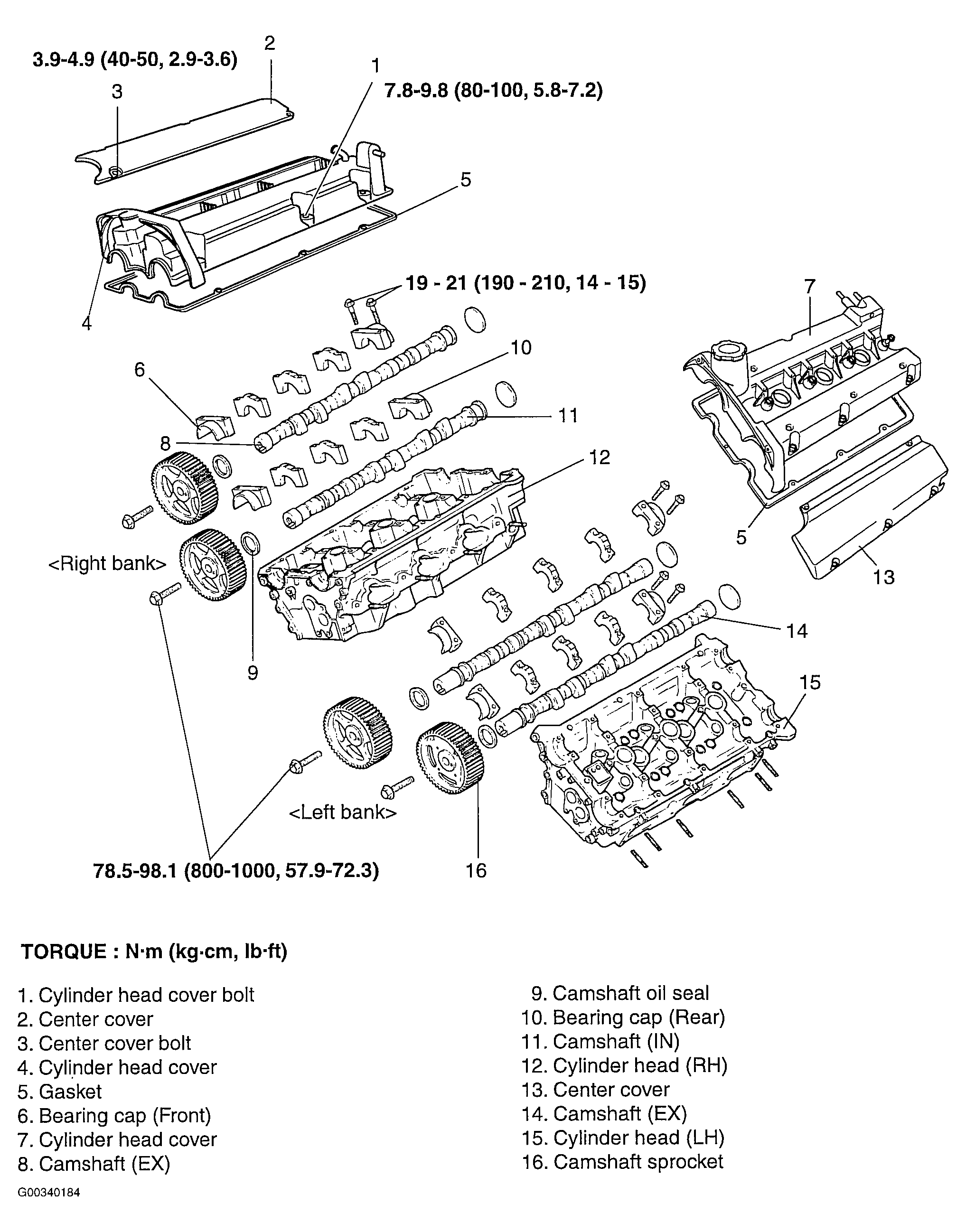

Fig 1: Camshaft System Replacement Components With Torque Specifications

G00340184

Courtesy of KIA MOTORS AMERICA, INC.
