Sorento EX, 4WD, Part Time
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Evaporative Emission Control System
>>
Components
Evaporative Emission Control System: Components

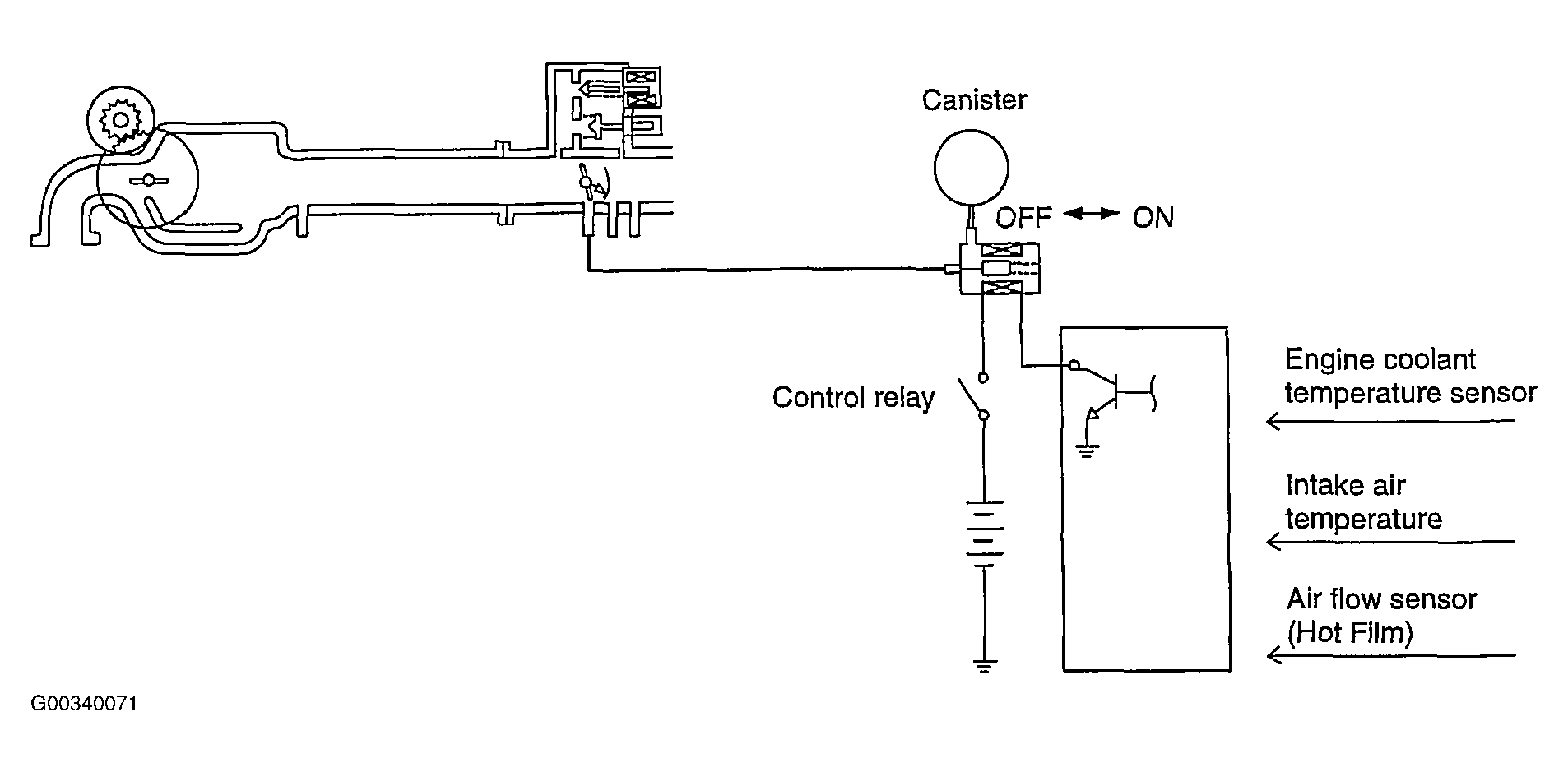

Fig 1: Identifying Evaporative Emission Control System Electrical Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
