LEMON Manuals: Even more car manuals for everyone

Home >> Kia >> 2004 >> Sorento EX, 4WD, Part Time >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Multi Function Switch Components & Connector End Views

Multi Function Switch Components & Connector End Views

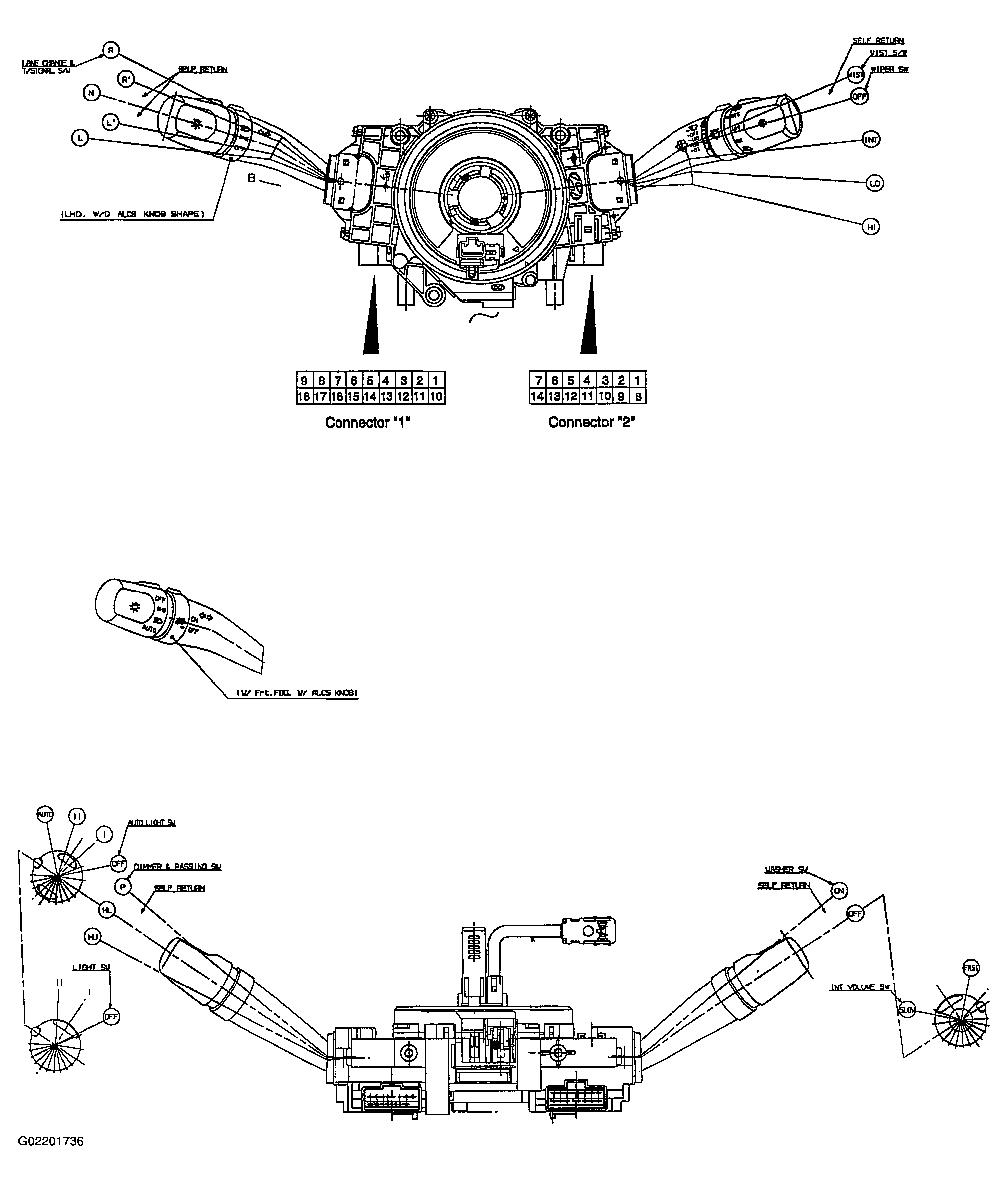

Fig 1: Multi Function Switch Components & Connector End Views

G02201736

Courtesy of KIA MOTORS AMERICA, INC.
