Pin Connection
Pin Connection

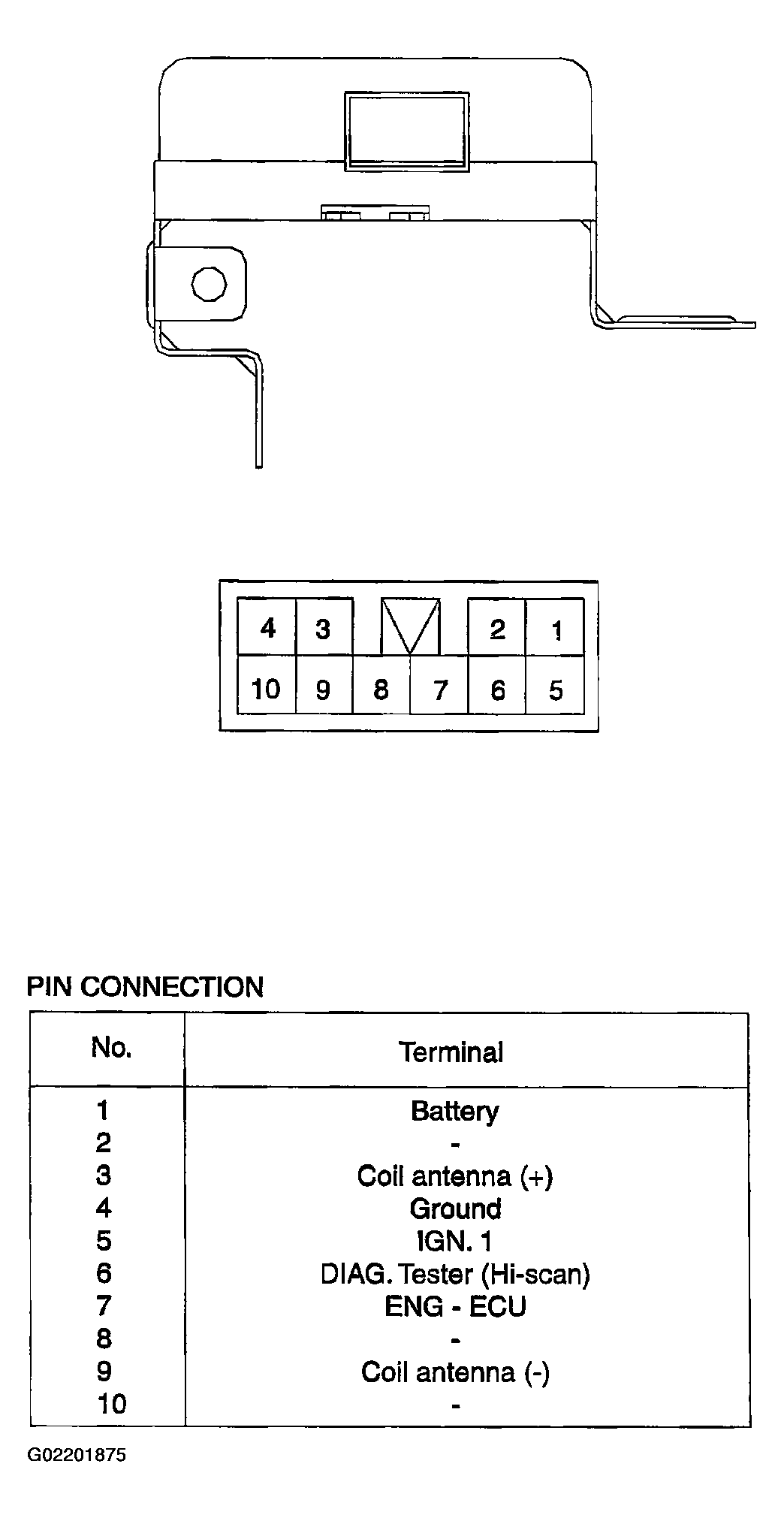

Fig 1: Identifying Pin Connections
Courtesy of KIA MOTORS AMERICA, INC.
