Removal And Installation

  1. Disconnect the negative(-) battery terminal.
  2. Loosen the screw and then remove the upper tray.
  3. Remove the instrument center side panel by pulling it.

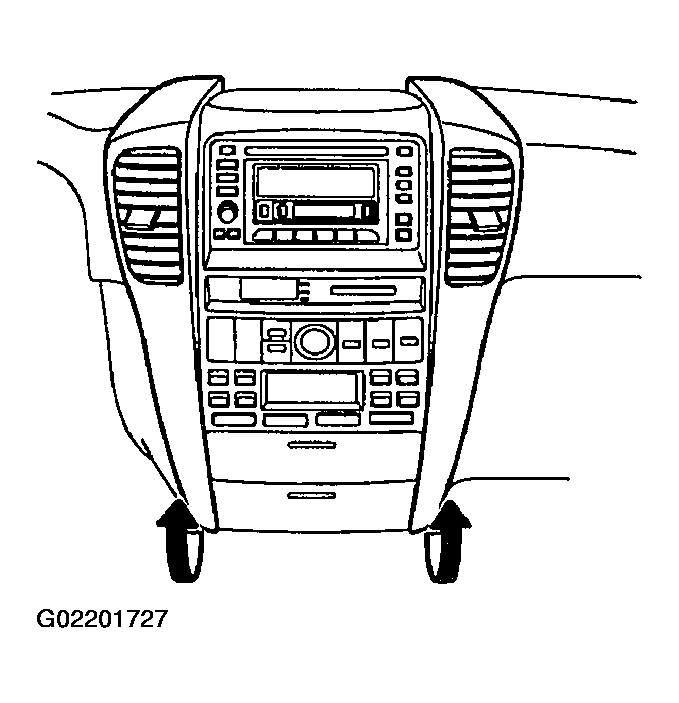

    Fig 1: Removing Instrument Center Side Panel
    G02201727Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the audio panel.

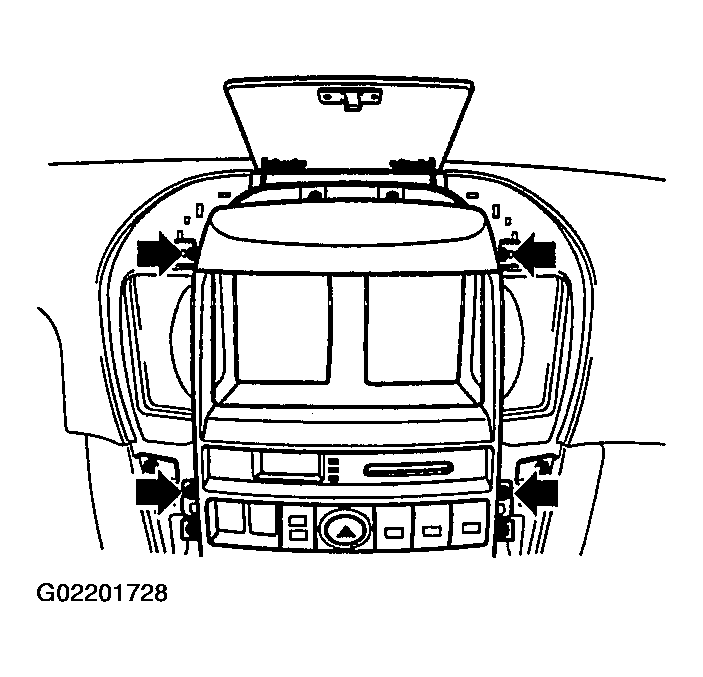

    Fig 2: Removing Audio Panel
    G02201728Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the screws holding the audio unit then remove the audio assembly.

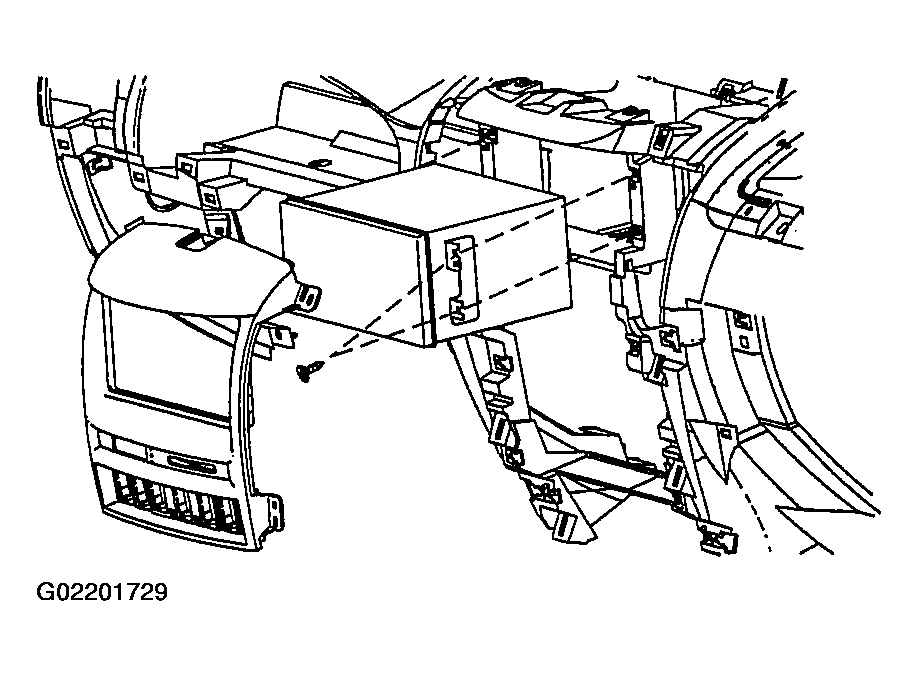

    Fig 3: Removing Audio Assembly
    G02201729Courtesy of KIA MOTORS AMERICA, INC.
  6. Installation is the reverse of removal.
