Home >> Kia >> 2004 >> Sedona LX >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Lower Arm >> Component

Lower Arm: Component

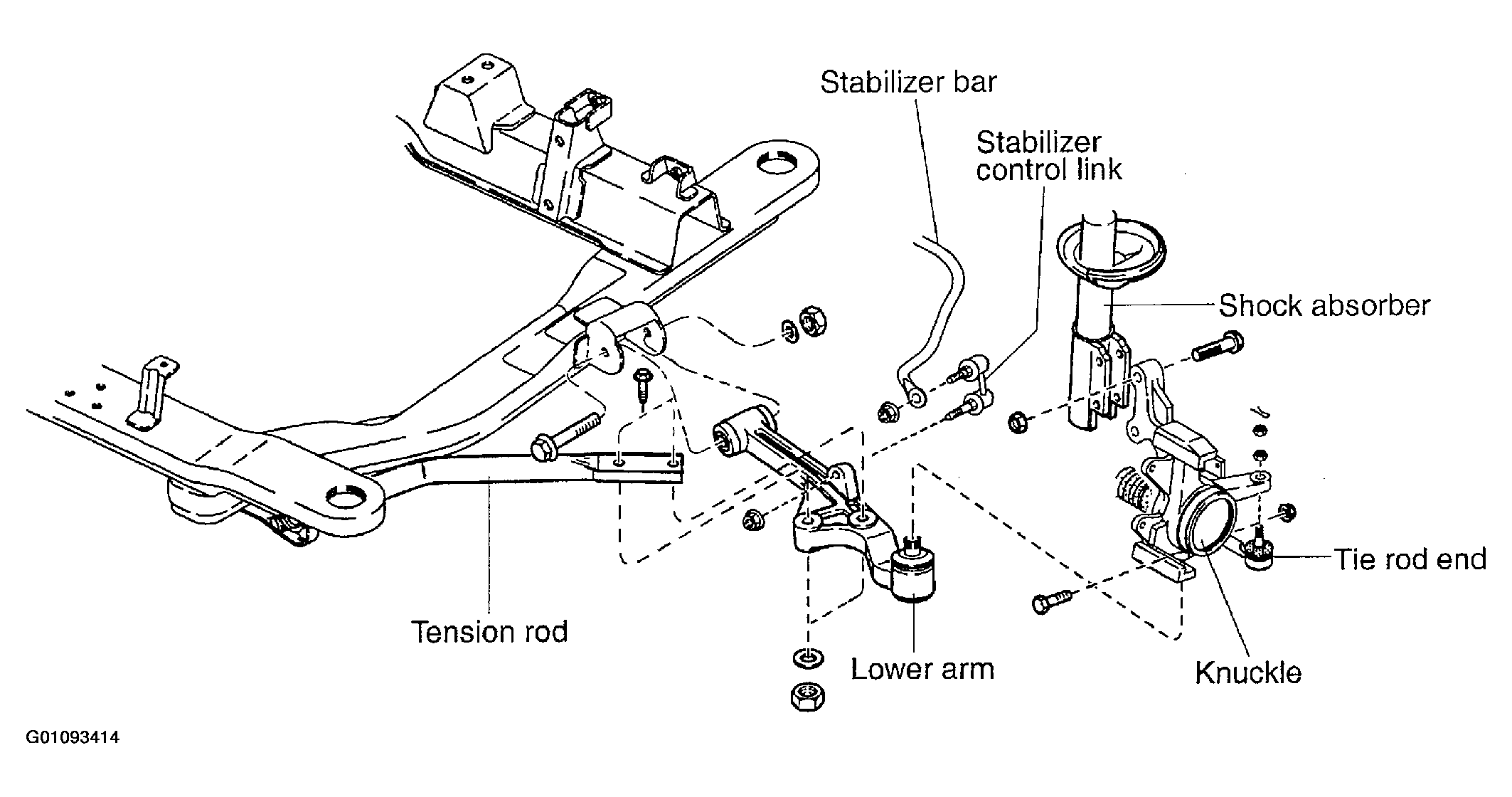

Fig 1: Illustrating Lower Arm Components

G01093414

Courtesy of KIA MOTORS AMERICA, INC.
