Home >> Kia >> 2004 >> Sedona LX >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Front Stabilizer Bar >> Component

Front Stabilizer Bar: Component

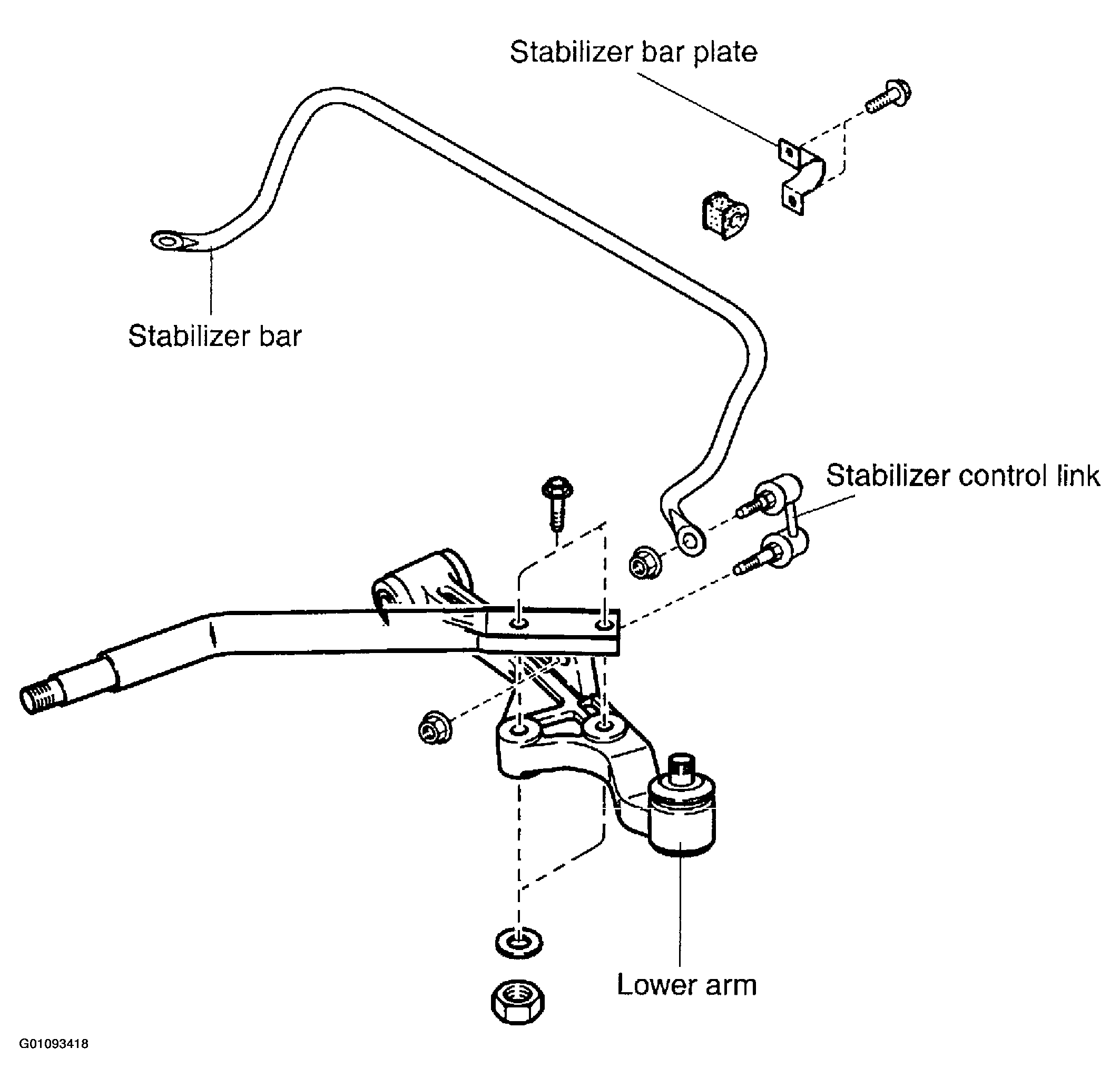

Fig 1: Illustrating Front Stabilizer Bar Components

G01093418

Courtesy of KIA MOTORS AMERICA, INC.
