Front Suspension System: Component

CAUTION: When tightening (by specified torque) the nuts of the arms and links of the front suspension system, the wheels of the vehicle shall be in contact with ground and under loads (2 passengers load at the front seats if possible).

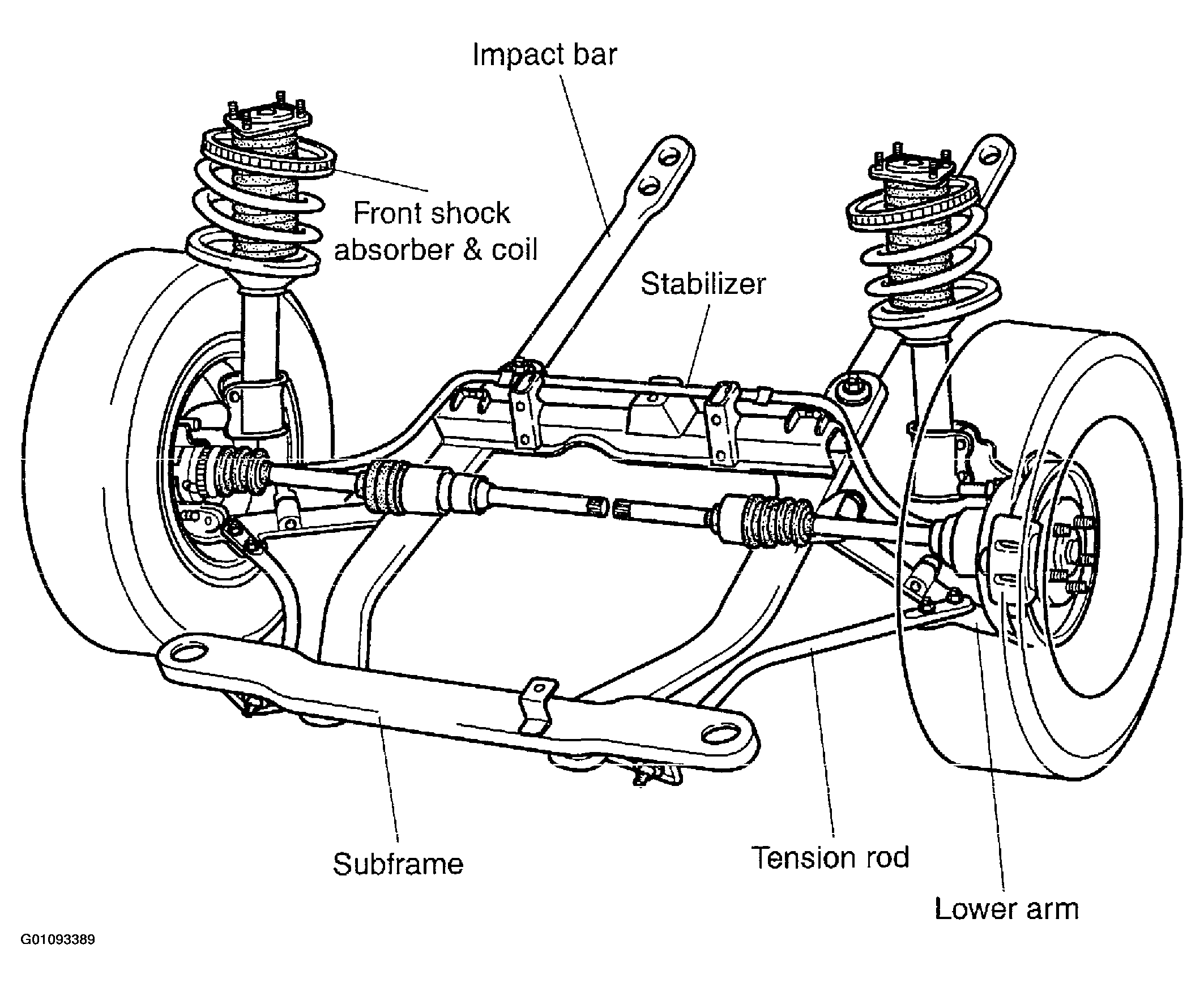

Fig 1: Illustrating Front Suspension System Components
G01093389Courtesy of KIA MOTORS AMERICA, INC.
