Radiator Fan Motor: Inspection

  1. Radiator fan motor.
    1. Check if the radiator fan is rotating when the battery voltage is supplied to both terminals as shown in the figure.

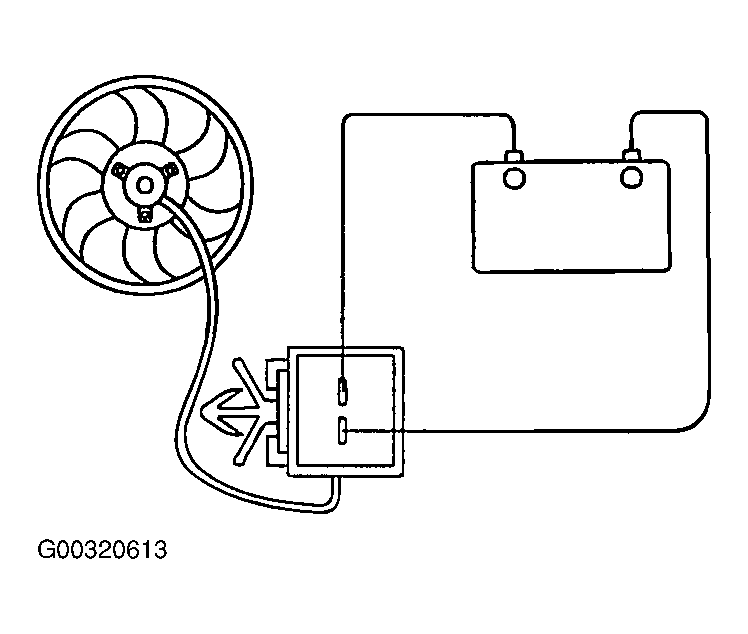

      Fig 1: Checking Radiator Fan Rotation
      G00320613Courtesy of KIA MOTORS AMERICA, INC.
    2. Check if there is abnormal noise while motor is rotating.
