Home >> Kia >> 2004 >> Sedona LX >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Removal & Installation >> Front Door >> Component

Front Door: Component

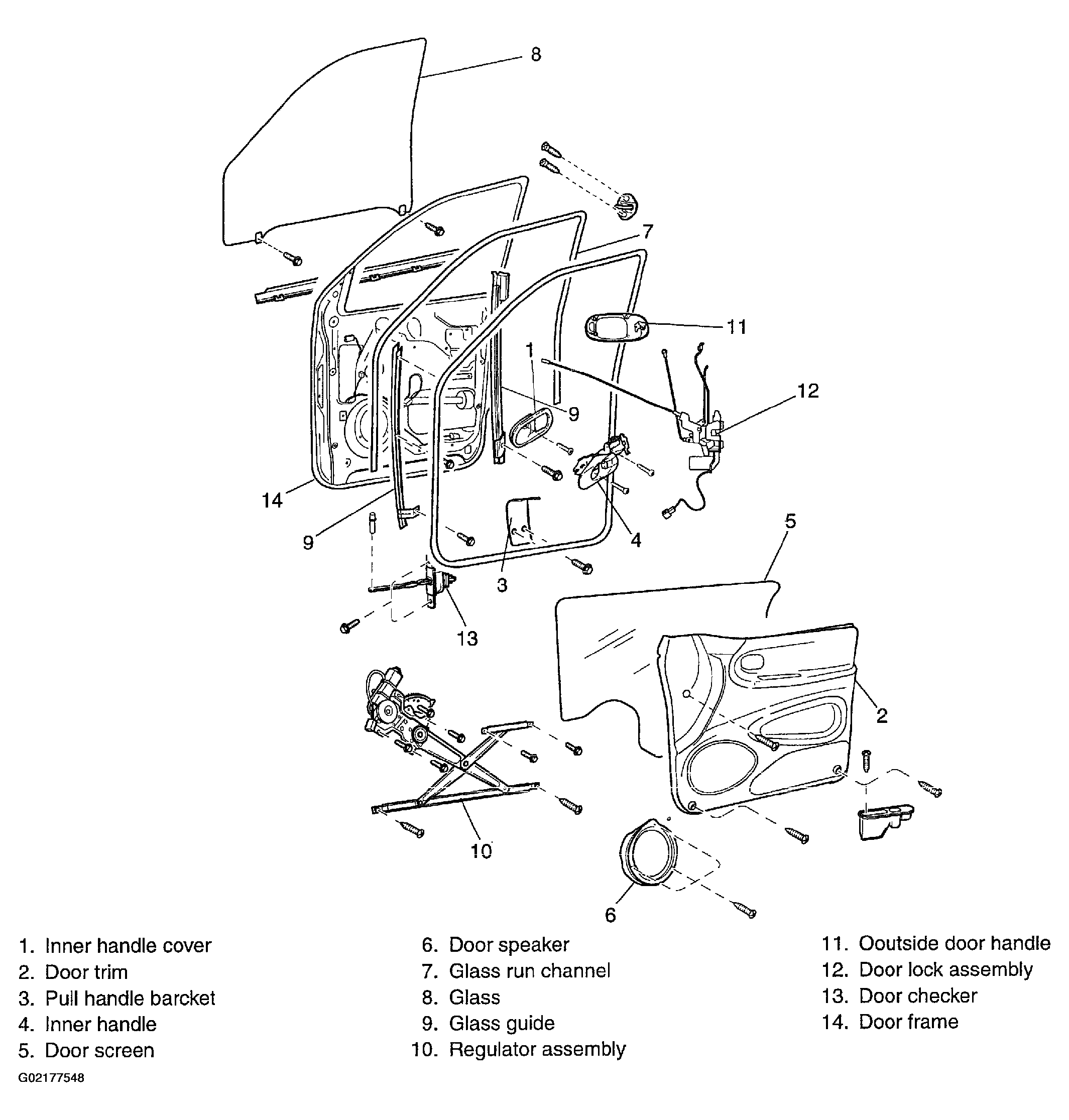

Fig 1: Exploded View Of Front Door

G02177548

Courtesy of KIA MOTORS AMERICA, INC.
