Circuit Diagram
Circuit Diagram

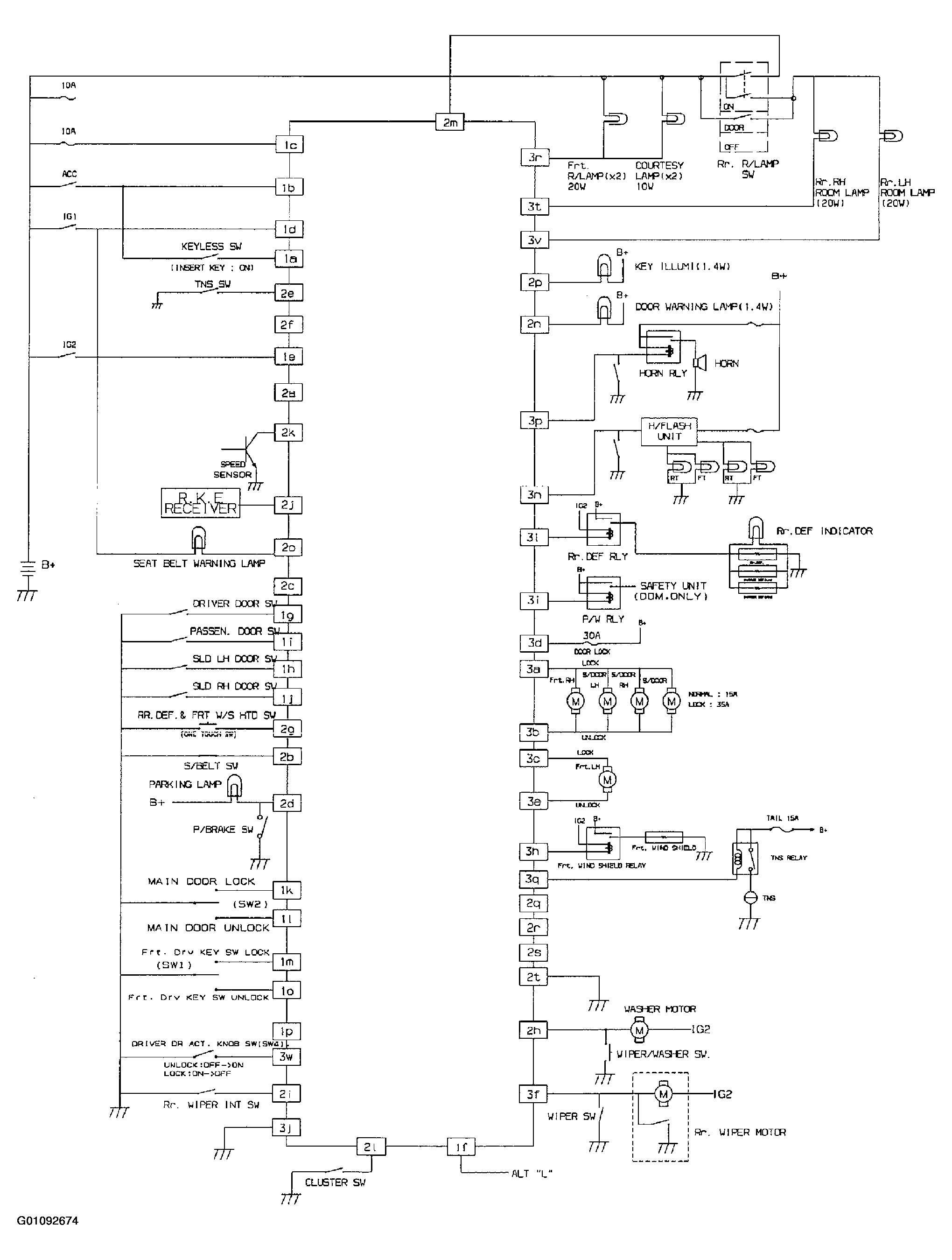

Fig 1: Identifying Electronic Time & Alarm Control Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
