Fuel Filler Cap

The fuel filler cap is equipped with a vacuum relief valve to prevent the escape of fuel vapor into the atmosphere.

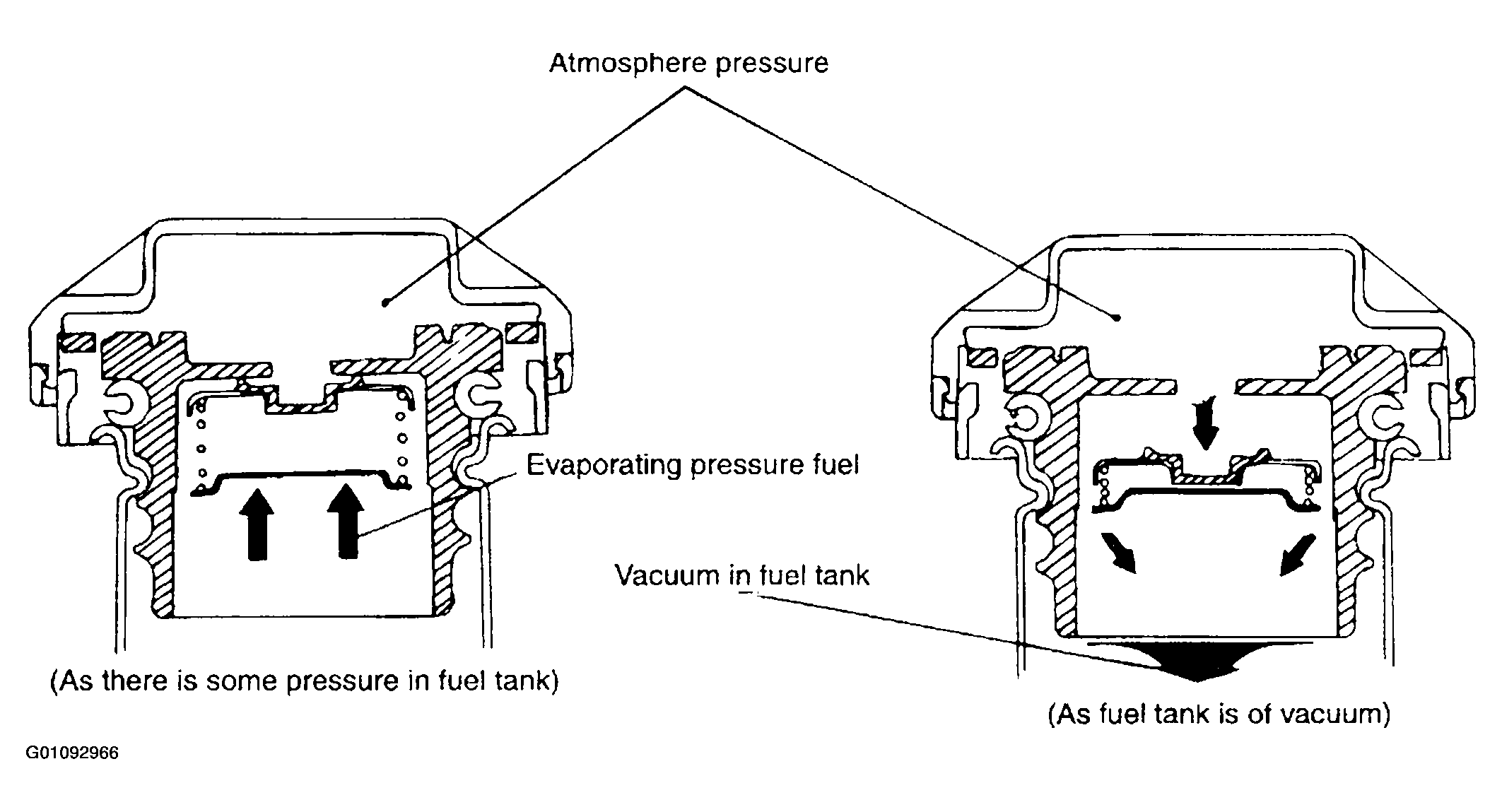

Fig 1: Cross-Sectional View Of Fuel Filler Cap
G01092966Courtesy of KIA MOTORS AMERICA, INC.
