Checking Engine Oil

  1. Position a vehicle on a level surface.
  2. Stop the engine.
    CAUTION: In the case of a vehicle that has been out of service for a prolonged period, run the engine for several minutes. Stop the engine and wait a few minutes at least, then check the oil level.
  3. If the oil level is found to have fallen to the lower limit (the L mark), refill to the "F" mark.

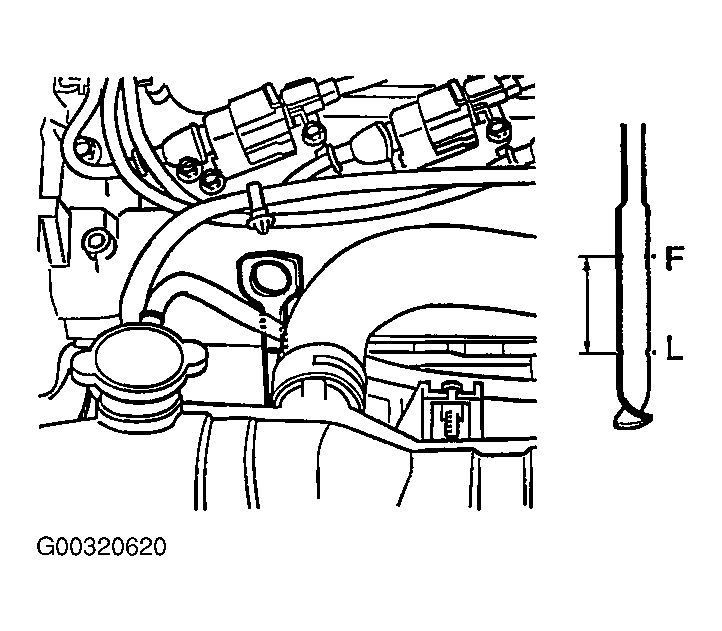

    Fig 1: Checking Engine Oil Level
    G00320620Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: When refilling, use the same type of engine oil as the one currently being used.
  4. Check that the oil is not dirty or mixed with coolant or gasoline, and that it has the proper viscosity.
