Retainer Lock

Insert the retainer lock by pressing down the valve spring with special tool (09222-28000).

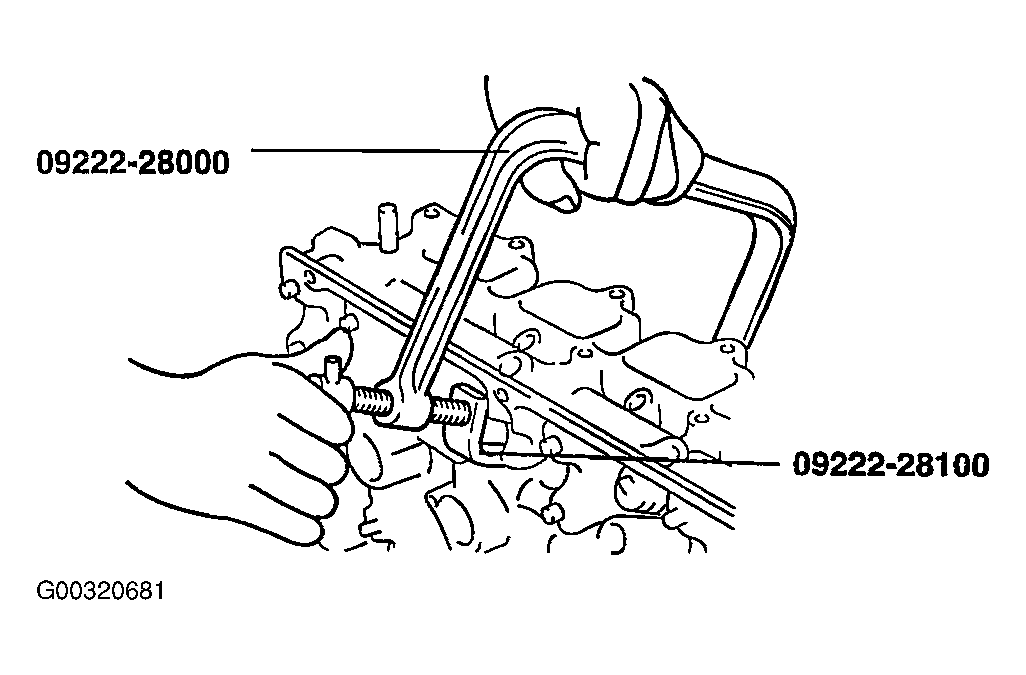

Fig 1: Inserting Retainer Lock

G00320681

Courtesy of KIA MOTORS AMERICA, INC.
