Cooling System: Thermostat: Components

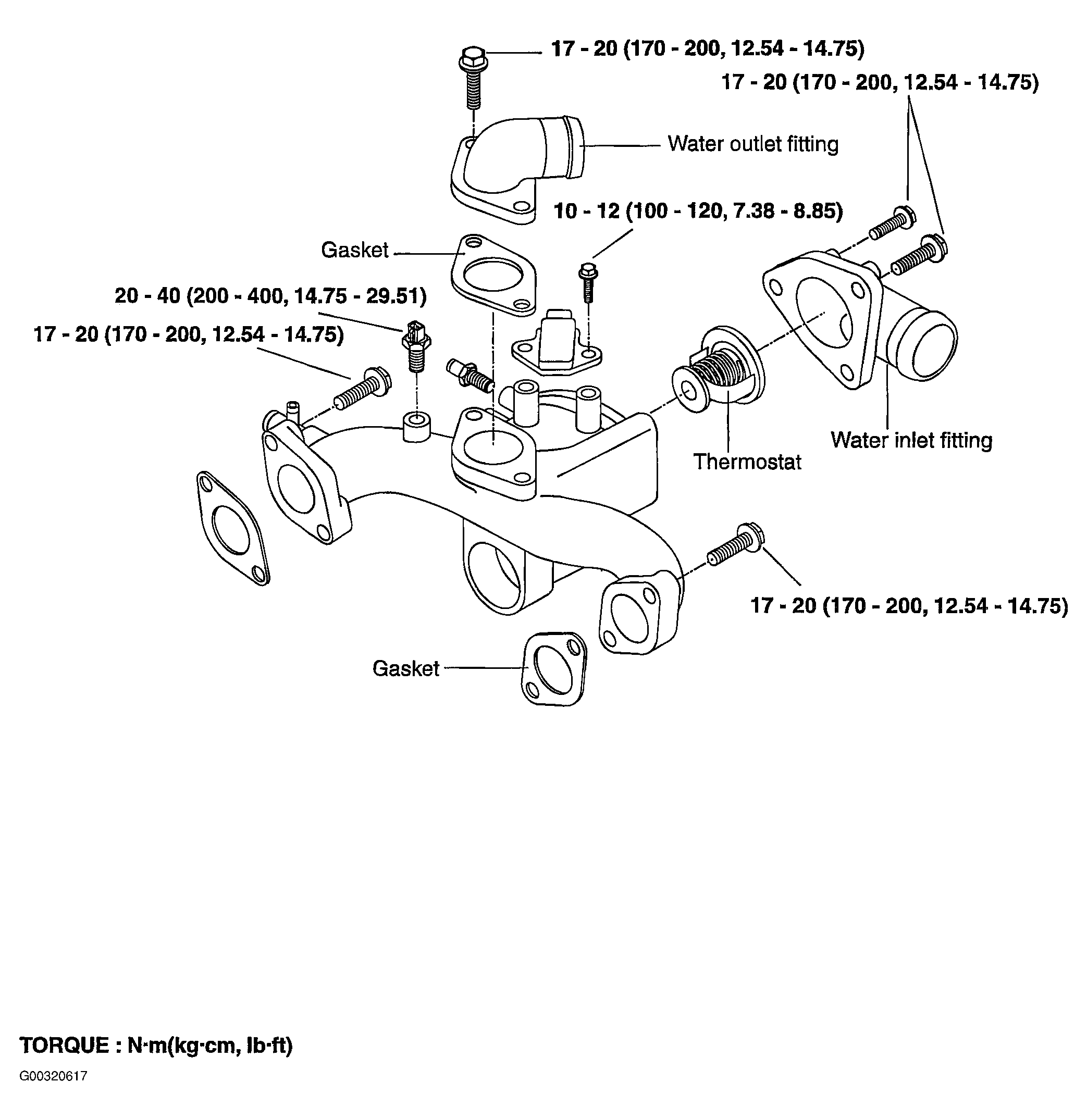

Fig 1: Thermostat Components

G00320617

Courtesy of KIA MOTORS AMERICA, INC.
