Battery Inspection

TESTING SHEET

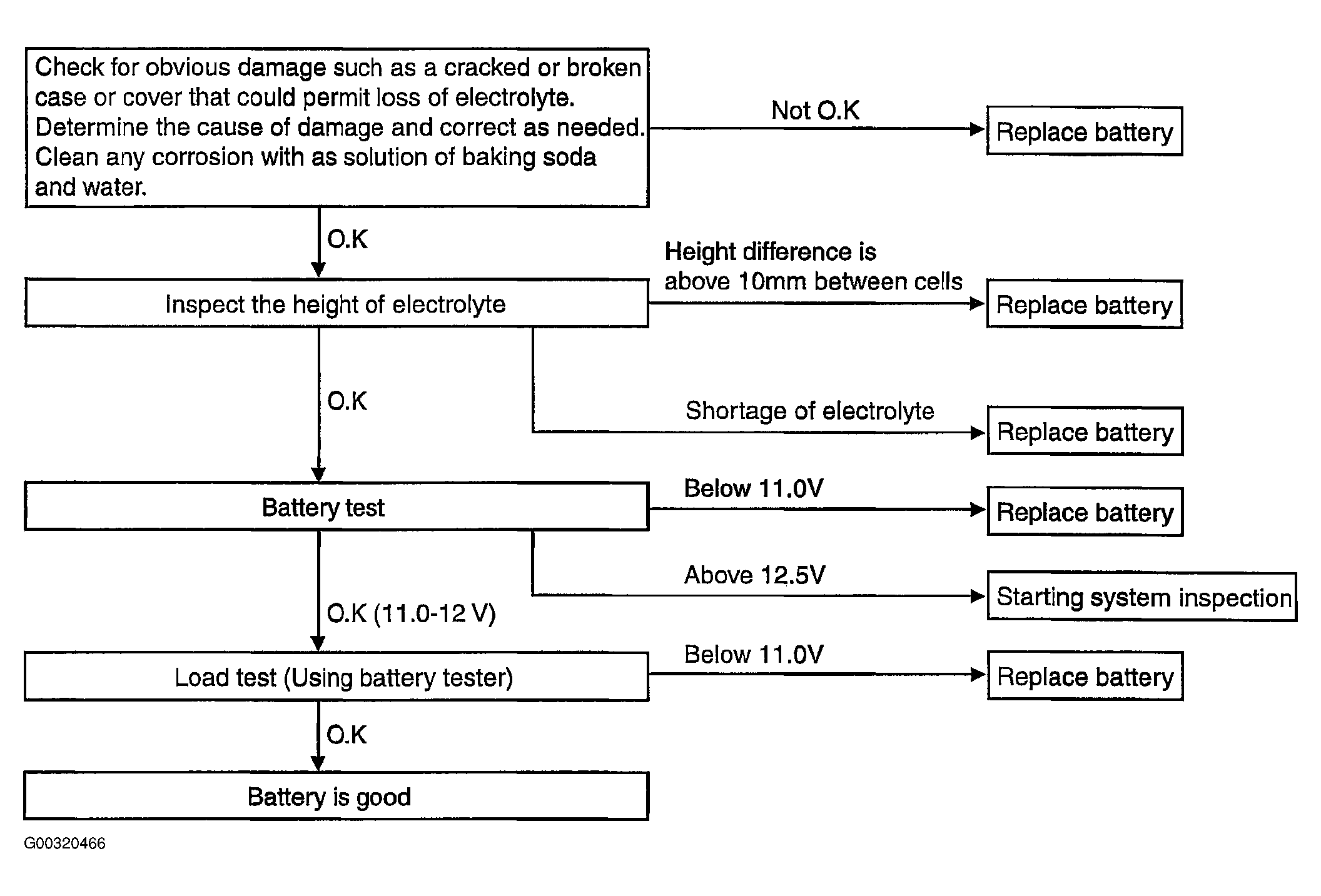

Fig 1: Battery Testing Sheet
Courtesy of KIA MOTORS AMERICA, INC.
CHECK SHEET

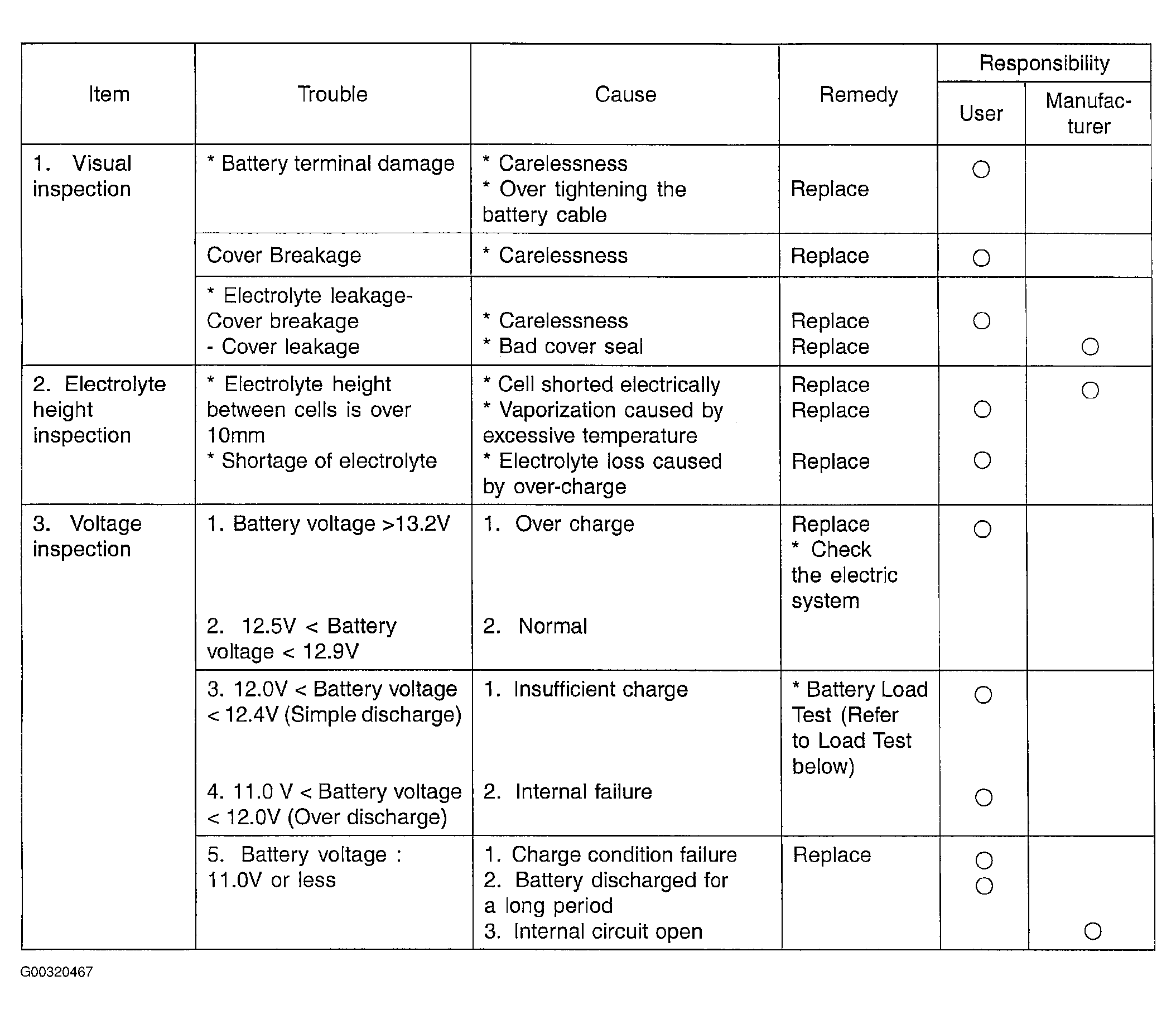

Fig 2: Manufacturers Responsibility Sheet
Courtesy of KIA MOTORS AMERICA, INC.
LOAD TEST
1. When discharging the battery during 15 seconds at half currency of Cold Cranking Power (CCP), the voltage of the battery should be as shown in illustration below.

  Fig 3: Regulating Voltage Table
  Courtesy of KIA MOTORS AMERICA, INC.
2. When the voltage is not within specification, repeat the load test again, and recharge.
3. If the battery is left alone for 2 house after recharging and its output is over 12.5V, and the voltage after a load test is over the standard value, the battery can be used.
