Fluid Temperature Sensor Checking: Notes

1. Remove the fluid temperature sensor.

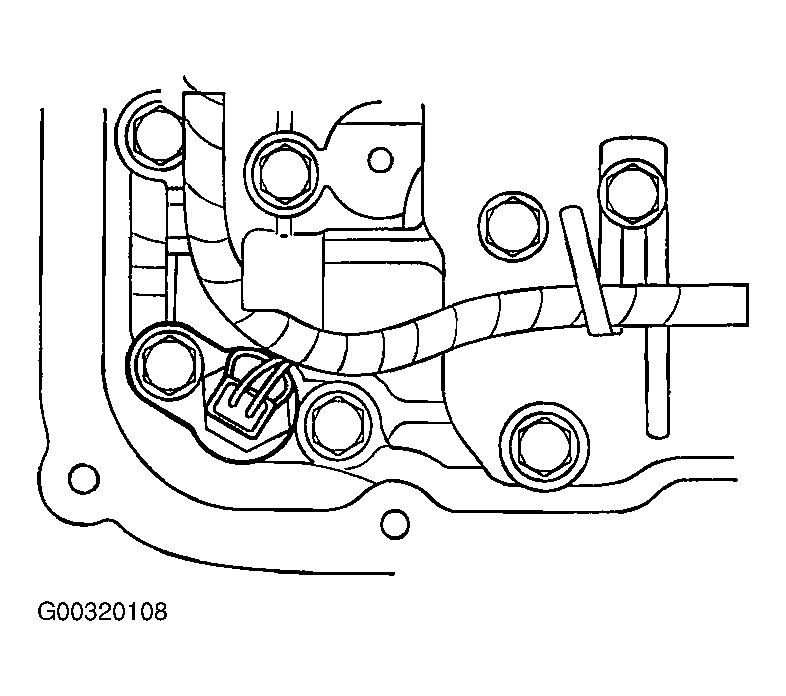

   Fig 1: Removing Fluid Temperature Sensor

   Courtesy of KIA MOTORS AMERICA, INC.
2. Check the resistance between the connector terminal No. 1 and 2 at the fluid temperature sensor side.

   STANDARD VALUE

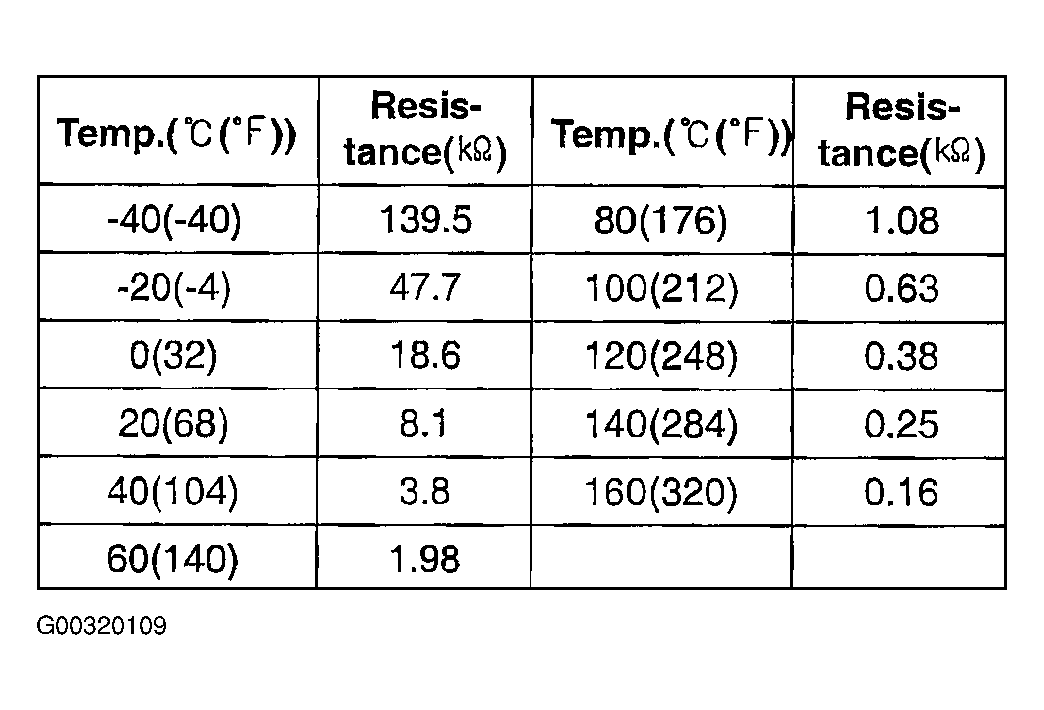

   Fig 2: Fluid Temperature Gauge Specifications

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Testing Fluid Temperature Gauge

   Courtesy of KIA MOTORS AMERICA, INC.
3. If the resistance deviates from the standard value, then replace the temperature sensor.
