Sensor Checking

The thermistor will detect the core temperature and interrupt compressor relay power, in order to prevent evaporator freezing by excessive cooling.

The thermistor is an NTC device.

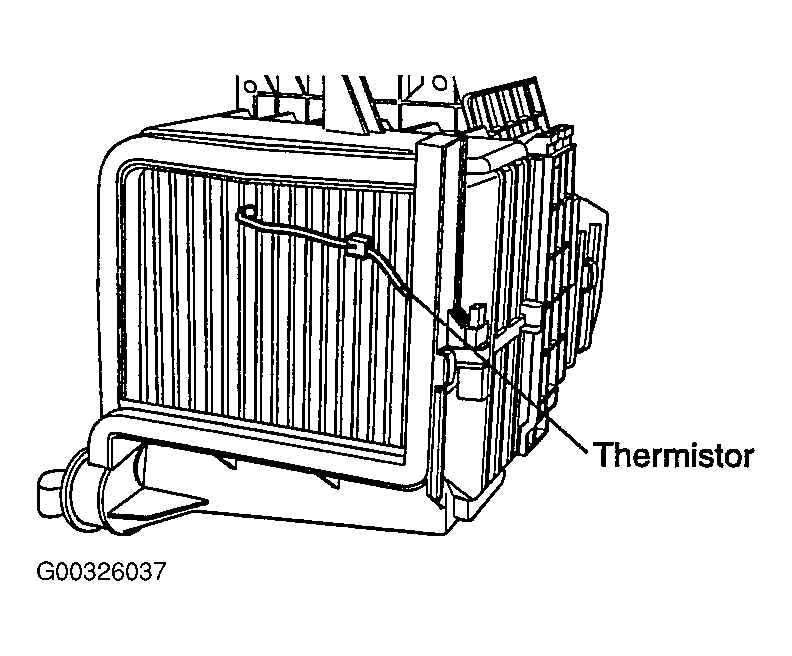

Fig 1: Identifying Thermistor Location
G00326037Courtesy of KIA MOTORS AMERICA, INC.
