Condenser Fan And Relay: Testing: Condenser

  1. Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or a pliers.
  2. Check the condenser connections for leakage, and repair or replace it, if required.

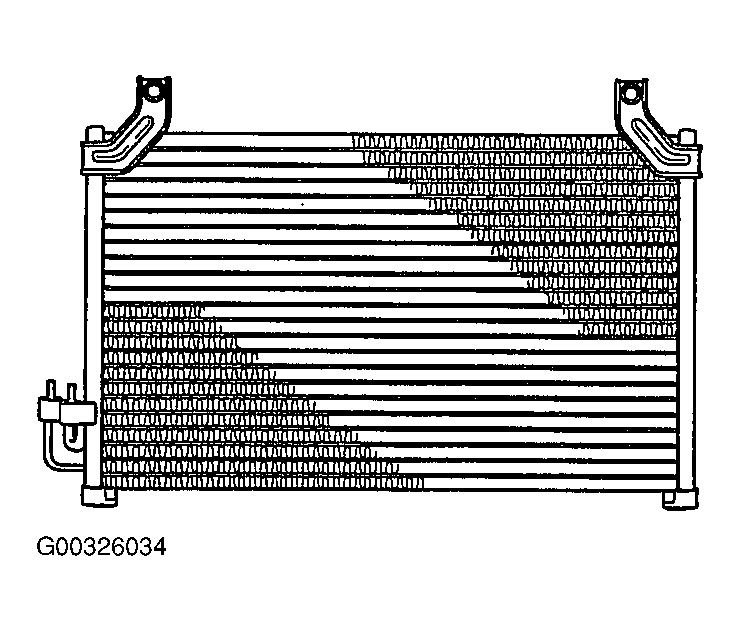

Fig 1: Testing Condenser For Leakage
G00326034Courtesy of KIA MOTORS AMERICA, INC.
