Condenser Fan

  1. Check the condenser fan for proper operation.
  2. Check the harness connector.
  3. Check the condenser fan motor using battery voltage as shown in figure.

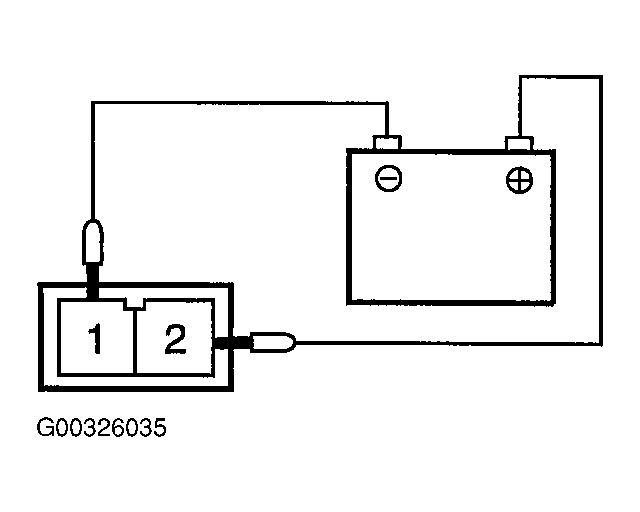

Fig 1: Testing Condenser Fan Operation
G00326035Courtesy of KIA MOTORS AMERICA, INC.
