Check (Manual Control)

Check for continuity and resistance between terminals.

Fig 1: Illustrating Blower Speed Connector & Controller
G00326041Courtesy of KIA MOTORS AMERICA, INC.

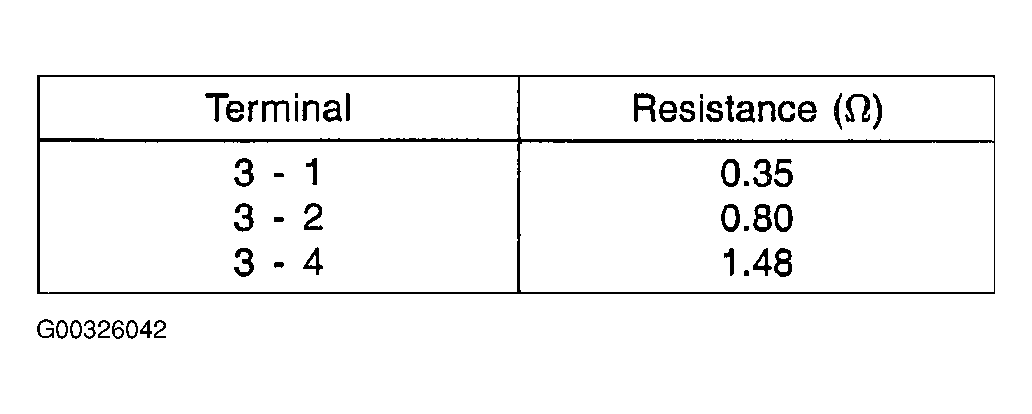

Fig 2: Blower Speed Controller Resistance Chart
G00326042Courtesy of KIA MOTORS AMERICA, INC.

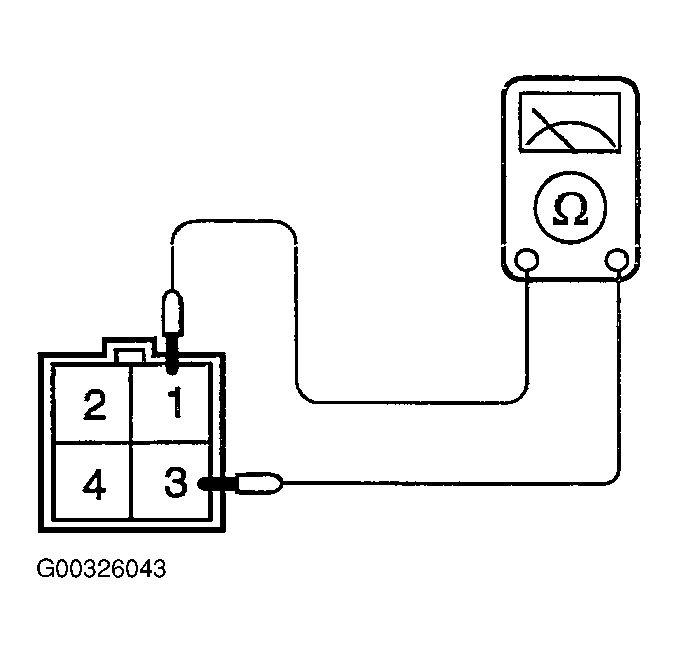

Fig 3: Testing Blower Controller Resistance
G00326043Courtesy of KIA MOTORS AMERICA, INC.
