Air Conditioning System: Components

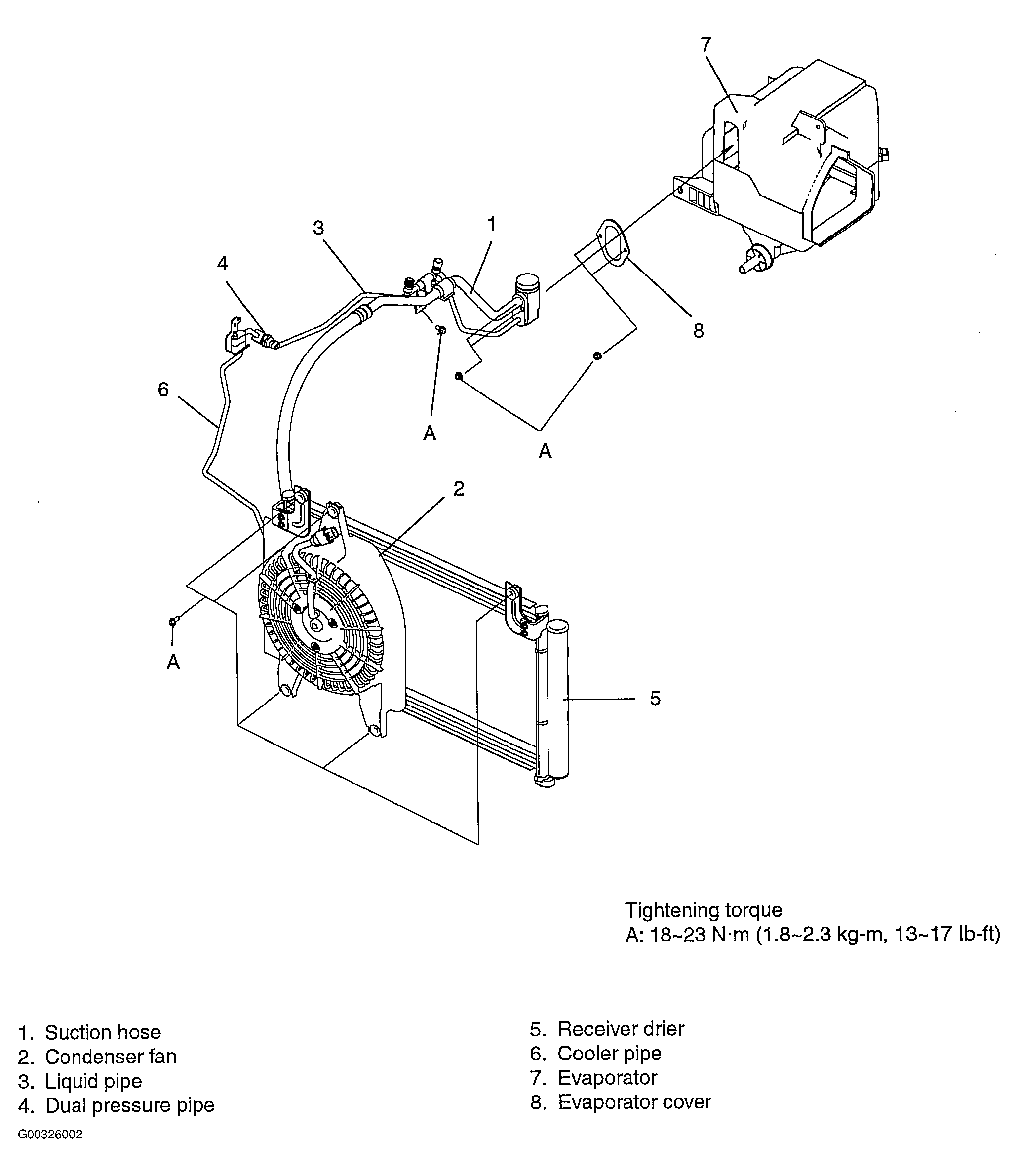

Fig 1: Air Conditioning System Components (1 Of 2)
G00326002Courtesy of KIA MOTORS AMERICA, INC.

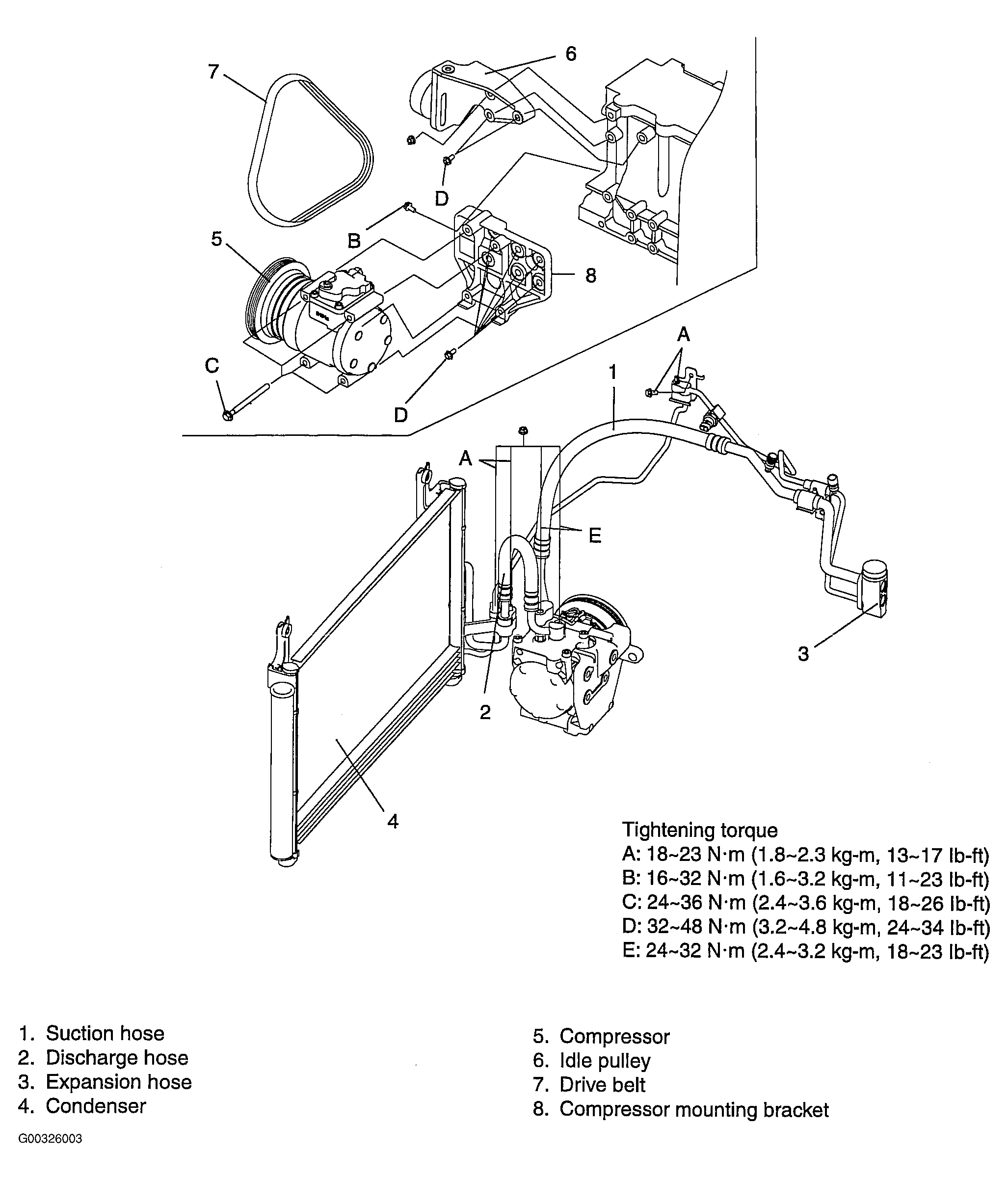

Fig 2: Air Conditioning System Components (2 Of 2)
G00326003Courtesy of KIA MOTORS AMERICA, INC.
