Fundamental Procedures: Symbols

There are six primary symbols used to complement illustrations. These symbols indicate the areas to apply such materials during service.

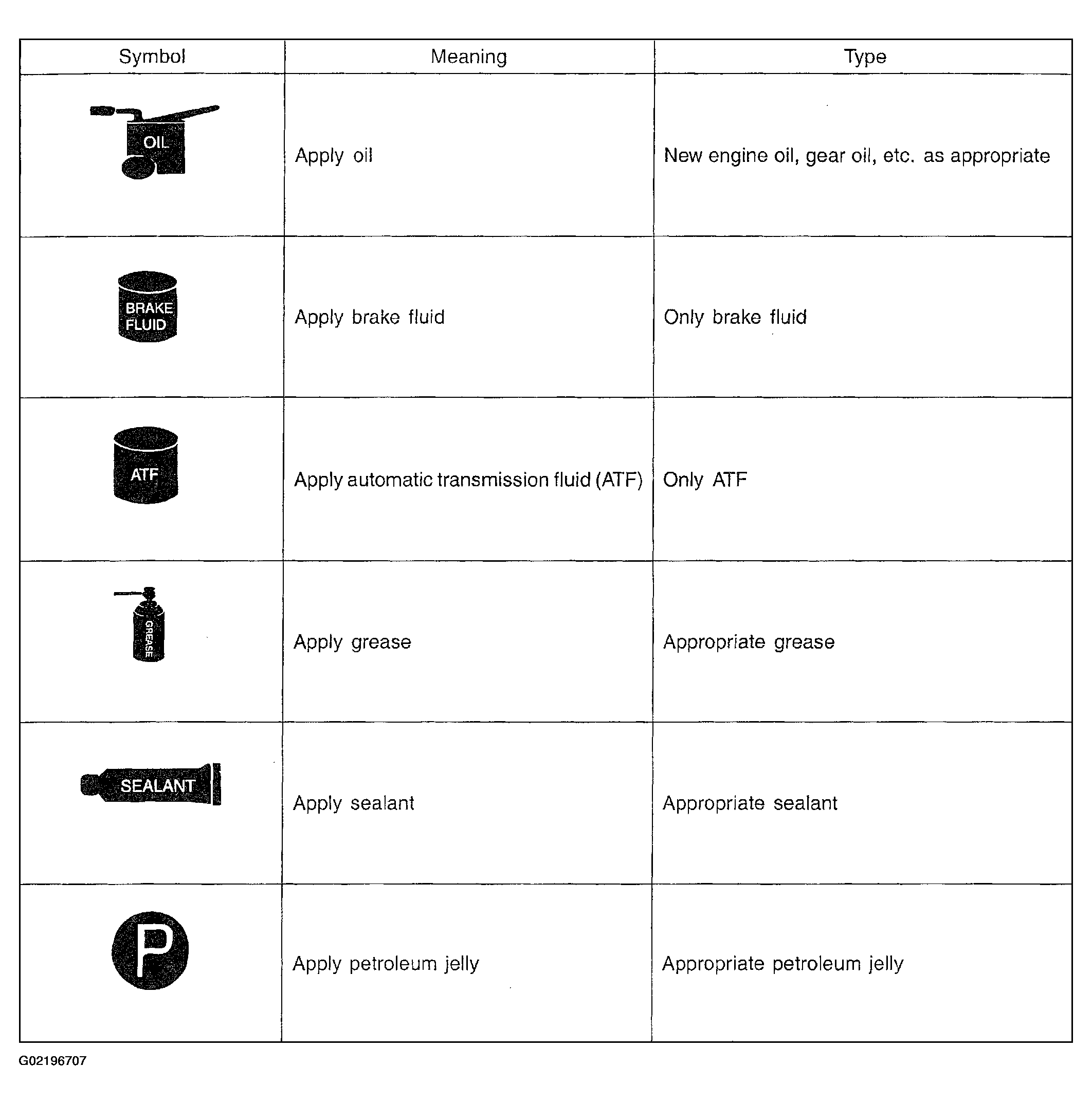

Fig 1: Identifying Primary Illustration Symbols

Courtesy of KIA MOTORS AMERICA, INC.
