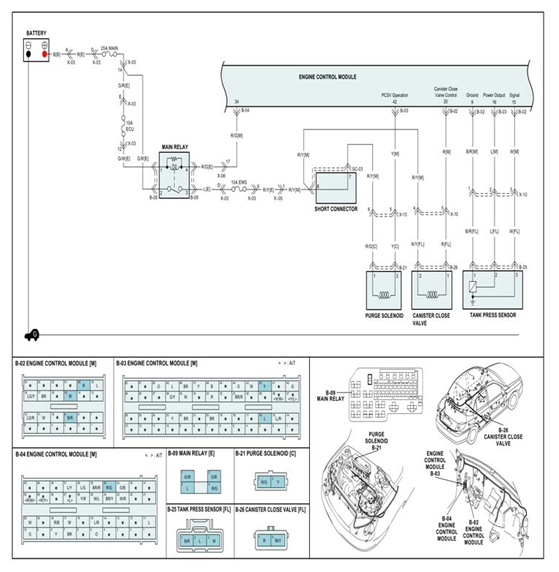

Home >> Kia >> 2004 >> Rio Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System & Fault Isolation >> DTC Troubleshooting >> DTC P0453: EVAP. Emission System - Pressure Sensor High Input >> General Information >> Schematic Diagram
