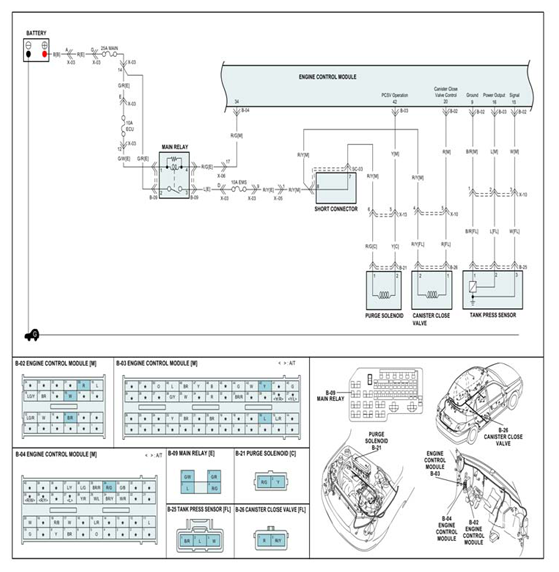

Home >> Kia >> 2004 >> Rio Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System & Fault Isolation >> DTC Troubleshooting >> DTC P0447: EVAP. Emission System - Vent Control Circuit Open >> General Information >> Schematic Diagram
