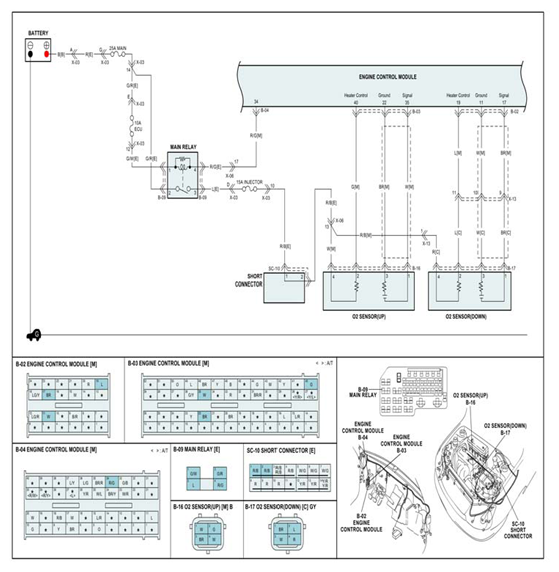

Home >> Kia >> 2004 >> Rio Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System & Fault Isolation >> DTC Troubleshooting >> DTC P0140: Ho2S Circuit No Activity Detected (Bank 1, Sensor 2) >> General Information >> Schematic Diagram
