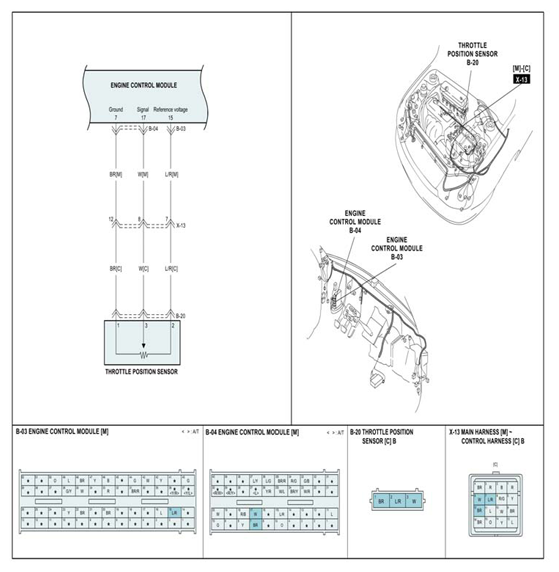

Home >> Kia >> 2004 >> Rio Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System & Fault Isolation >> DTC Troubleshooting >> DTC P0122: Throttle Position Sensor Circuit Low Input >> Inspection/Repair >> W/Harness Inspection >> Schematic Diagram
