General Information: Specification

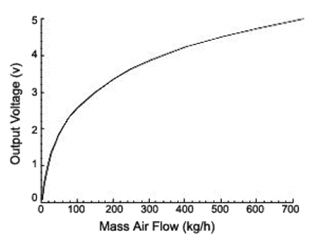

Fig 1: Mass Air Flow And Output Voltage Graph
G07331529
VOLTAGE REFERENCE CHART

Test Condition MAF (V)
IG. ON Approx. 0.1V
Idle Approx. 0.6~0.8V
