Main Moving System: Crankshaft: Component

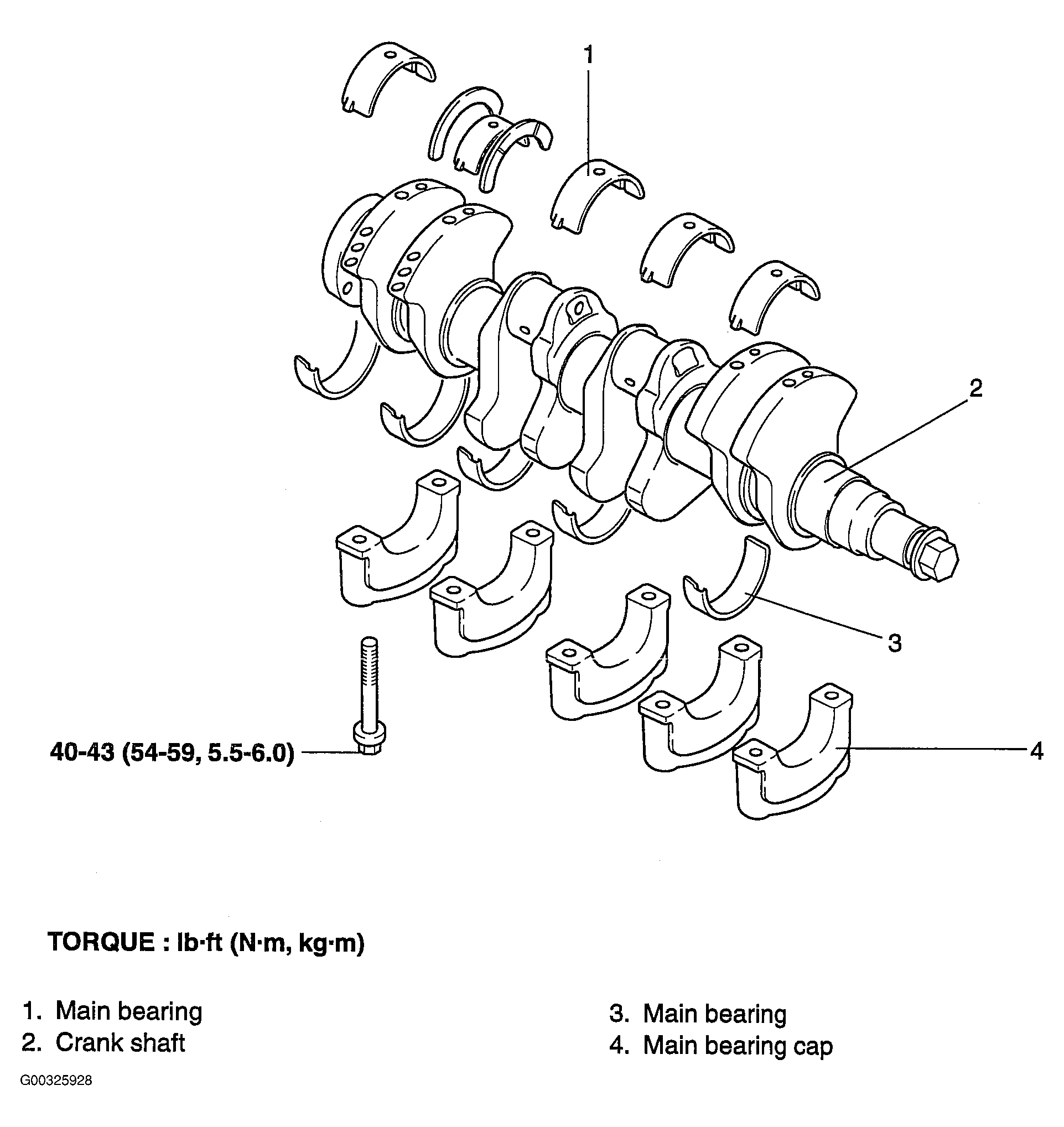

Fig 1: Illustrating Crankshaft Components

G00325928

Courtesy of KIA MOTORS AMERICA, INC.
