Oil Pump: Component

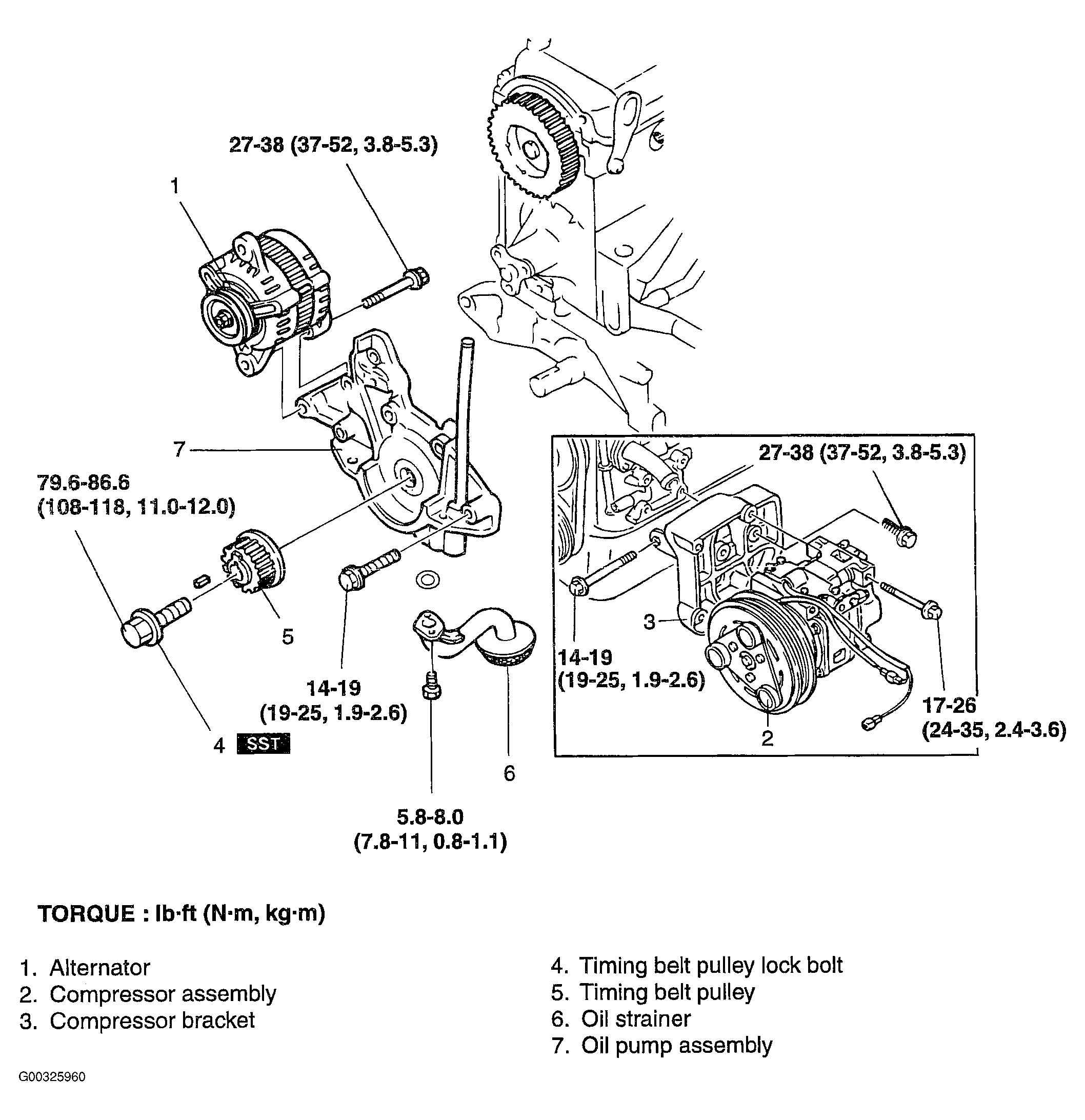

Fig 1: Oil Pump Replacement Components (1 Of 2) With Torque Specifications
G00325960Courtesy of KIA MOTORS AMERICA, INC.

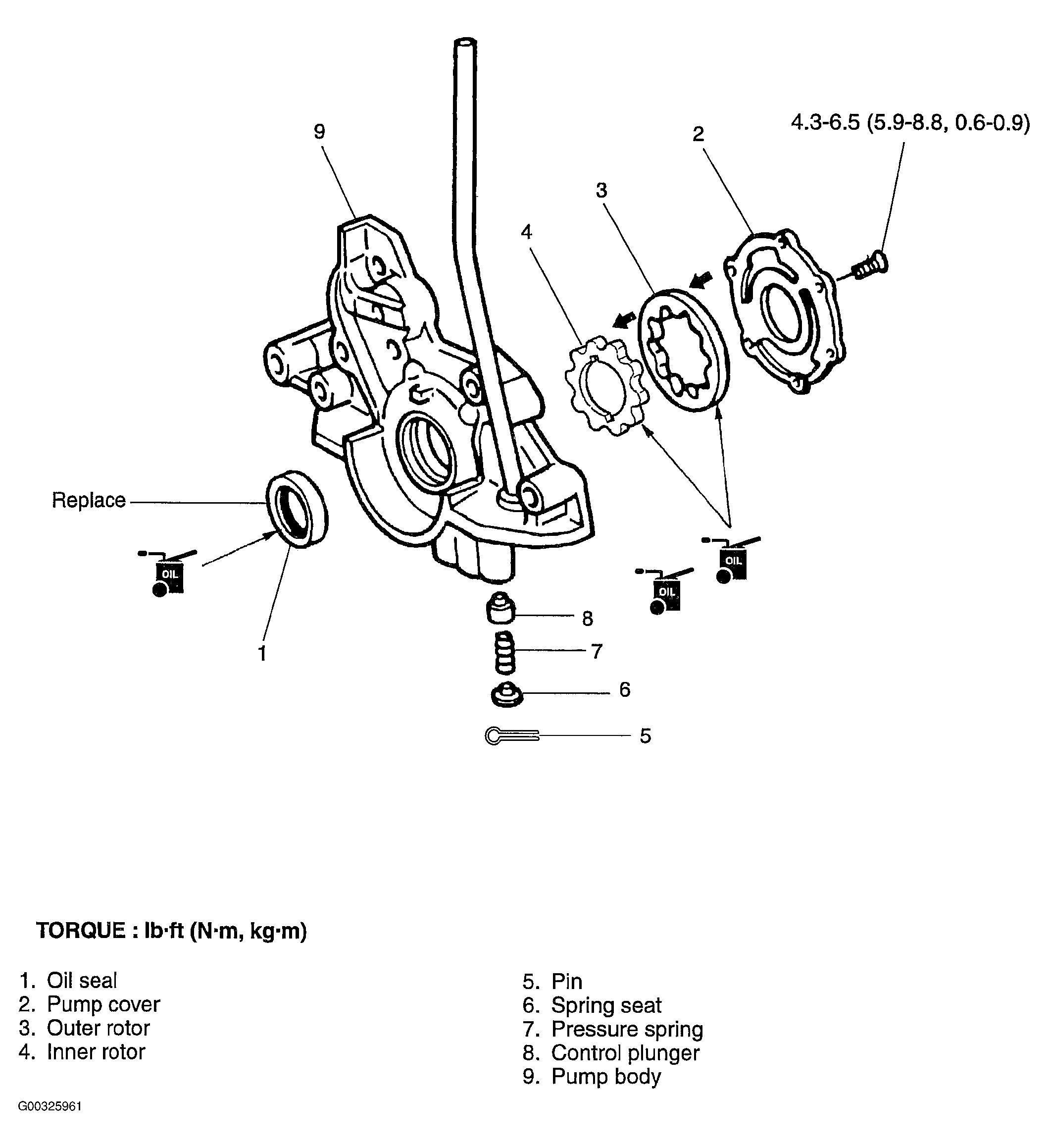

Fig 2: Oil Pump Replacement Components (2 Of 2) With Torque Specifications
G00325961Courtesy of KIA MOTORS AMERICA, INC.
