Automatic Transmission - Removal & Installation: Component

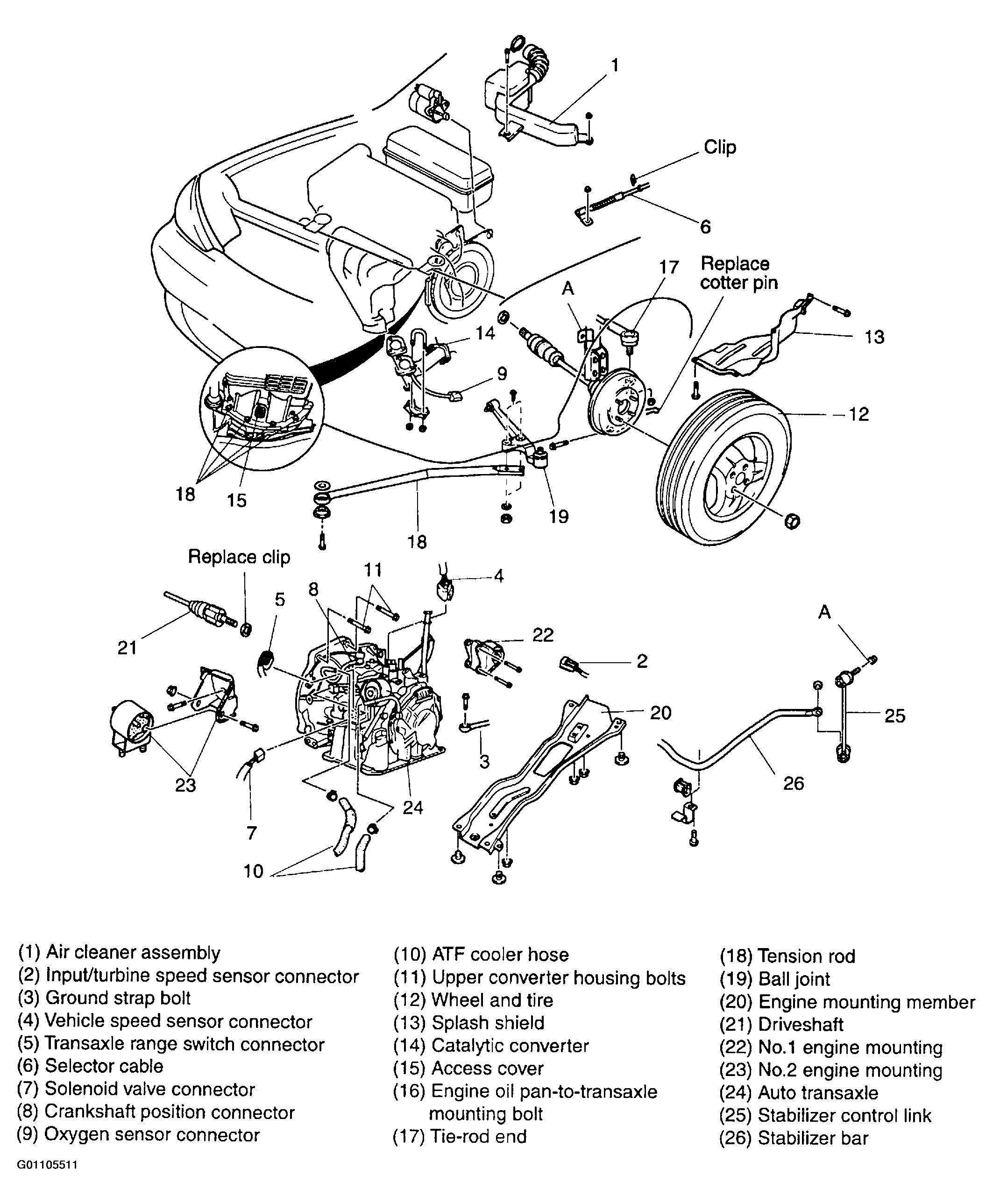

Fig 1: Exploded View Of Transaxle Removal

G01105511

Courtesy of KIA MOTORS AMERICA, INC.
