Assembly Note

  1. Install the rotor to the shaft with the rotor's identification mark facing upward.

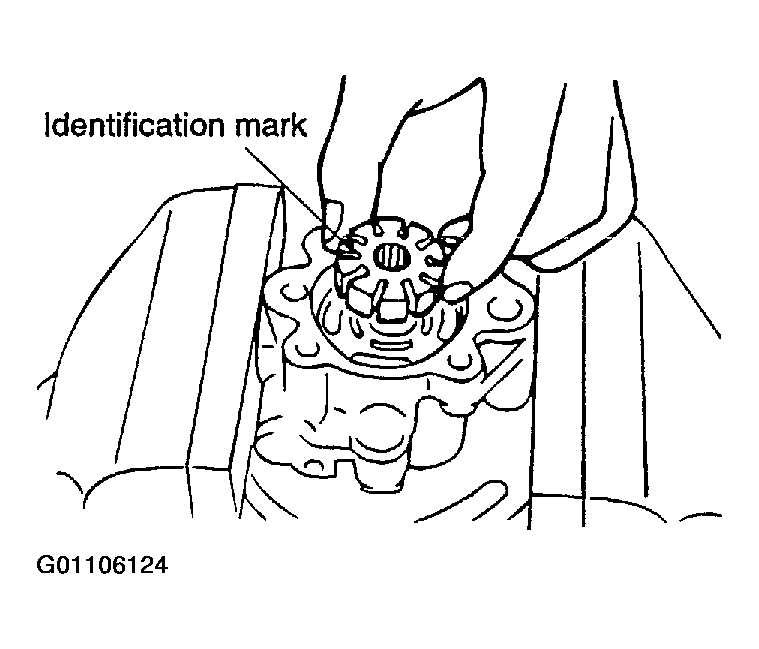

    Fig 1: Installing The Rotor To The Shaft
    G01106124Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the cam ring so that its identification mark is facing downward.

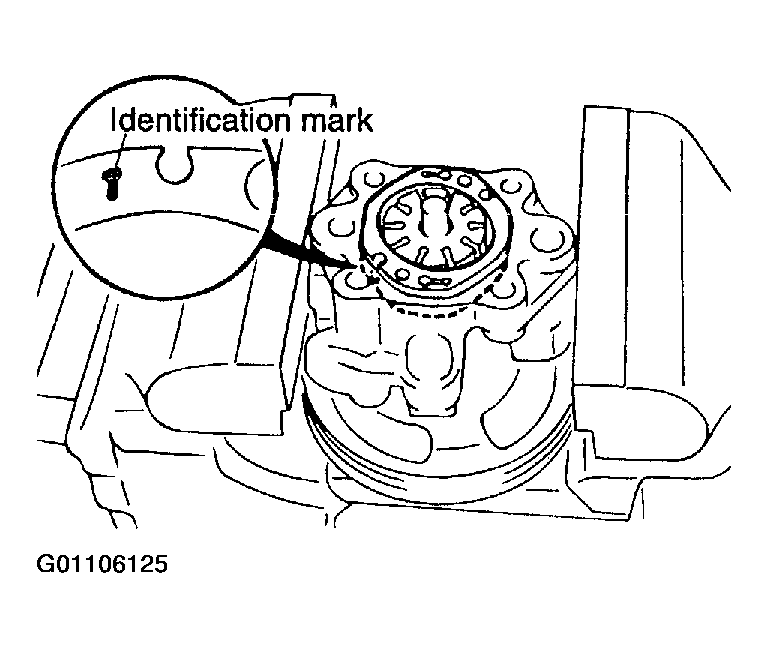

    Fig 2: Installing The Cam Ring
    G01106125Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the vanes (10 pieces) to the rotor, with the R part of the vanes facing outward.
    Fig 3: Installing The Vanes
    G01106126Courtesy of KIA MOTORS AMERICA, INC.
