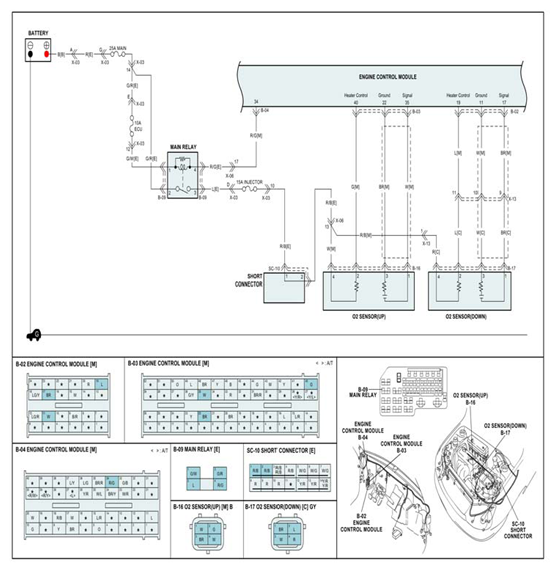

Home >> Kia >> 2004 >> Rio Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System & Fault Isolation >> DTC Troubleshooting >> DTC P0030: Ho2S Heater Control Circuit (Bank 1, Sensor 1) >> General Information >> Schematic Diagram
