Indicators & Gauges: Specification

Fig 1: Illustrating Cluster Bulb & Connector Position

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Cluster Bulb Specification Chart

Courtesy of KIA MOTORS AMERICA, INC.

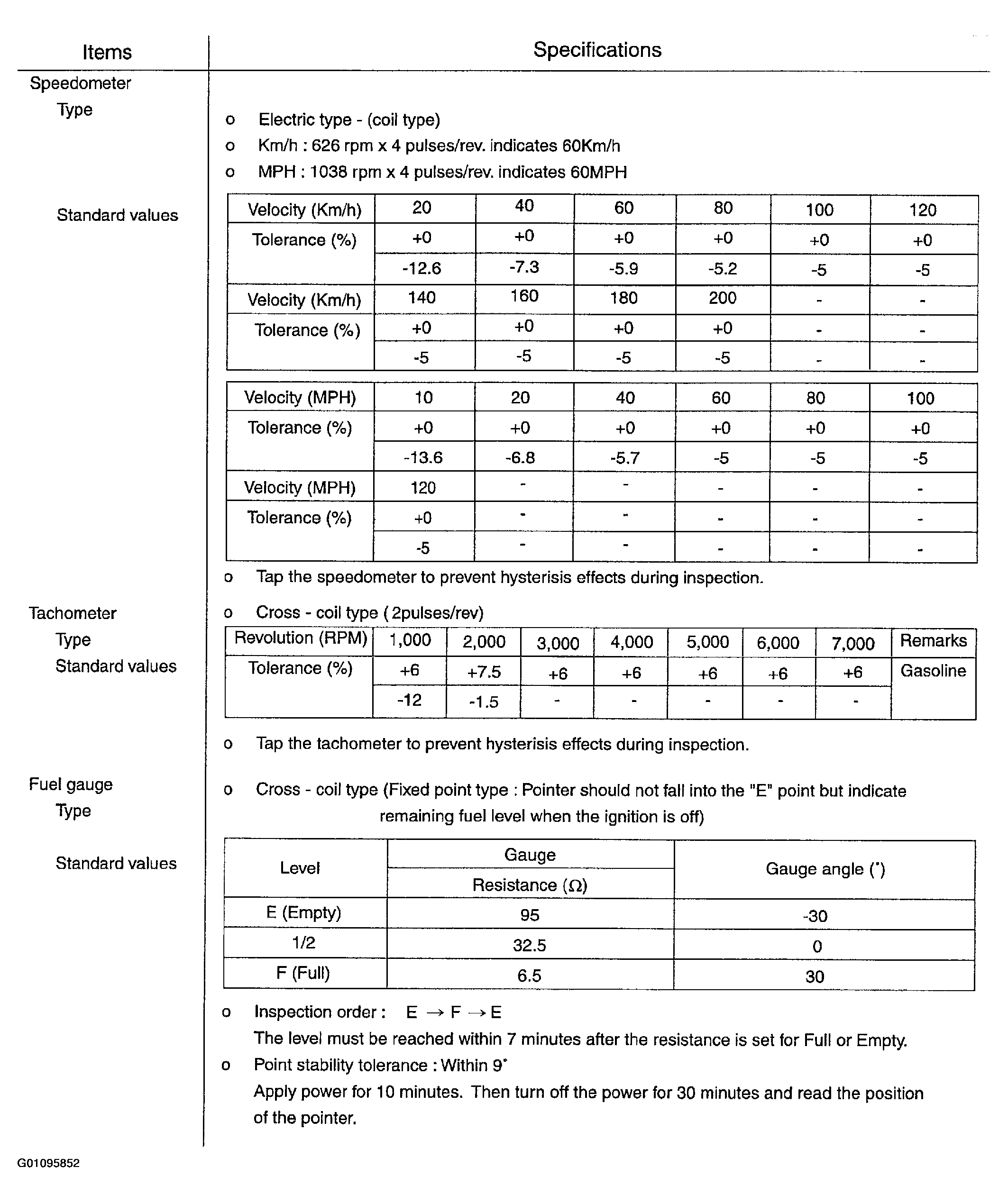

Fig 3: Cluster Gauge Specifications (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

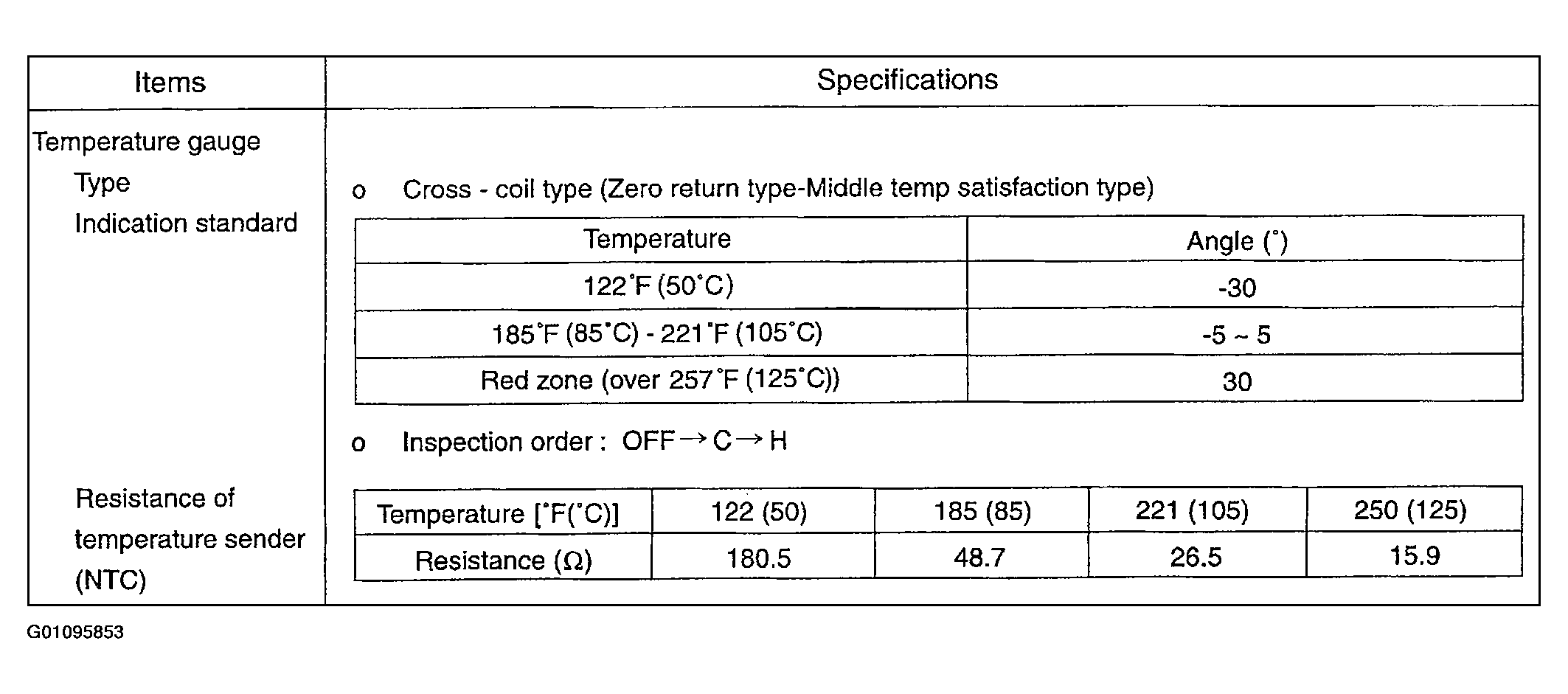

Fig 4: Cluster Gauge Specifications (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
