Engine And Transaxle Assembly: Components

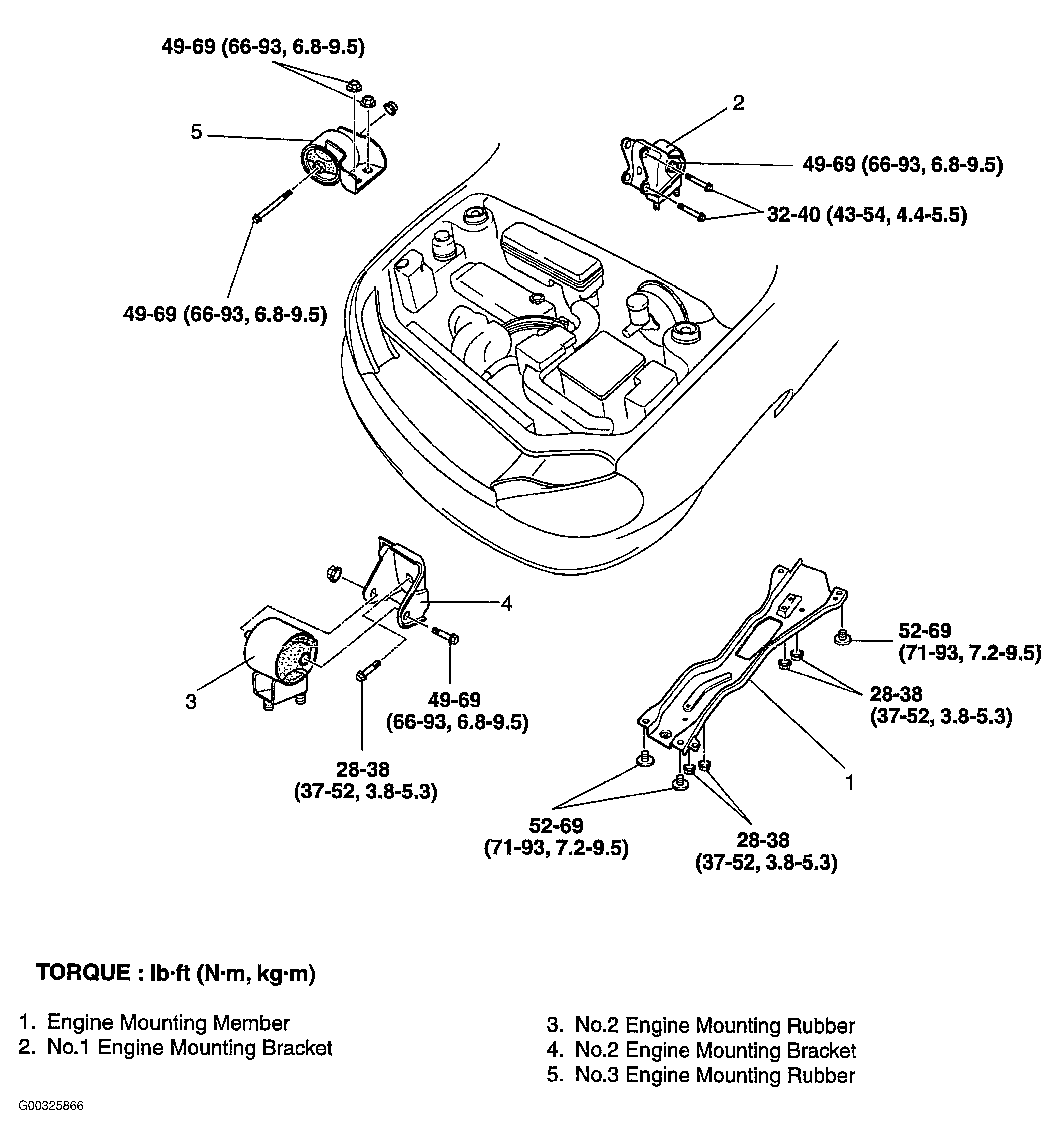

Fig 1: Engine & Transaxle Assembly Replacement Components With Torque Specifications (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Engine & Transaxle Assembly Replacement Components With Torque Specifications (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Engine & Transaxle Assembly Replacement Components With Torque Specifications (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Engine & Transaxle Assembly Replacement Components With Torque Specifications (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
