Output Shaft: Components

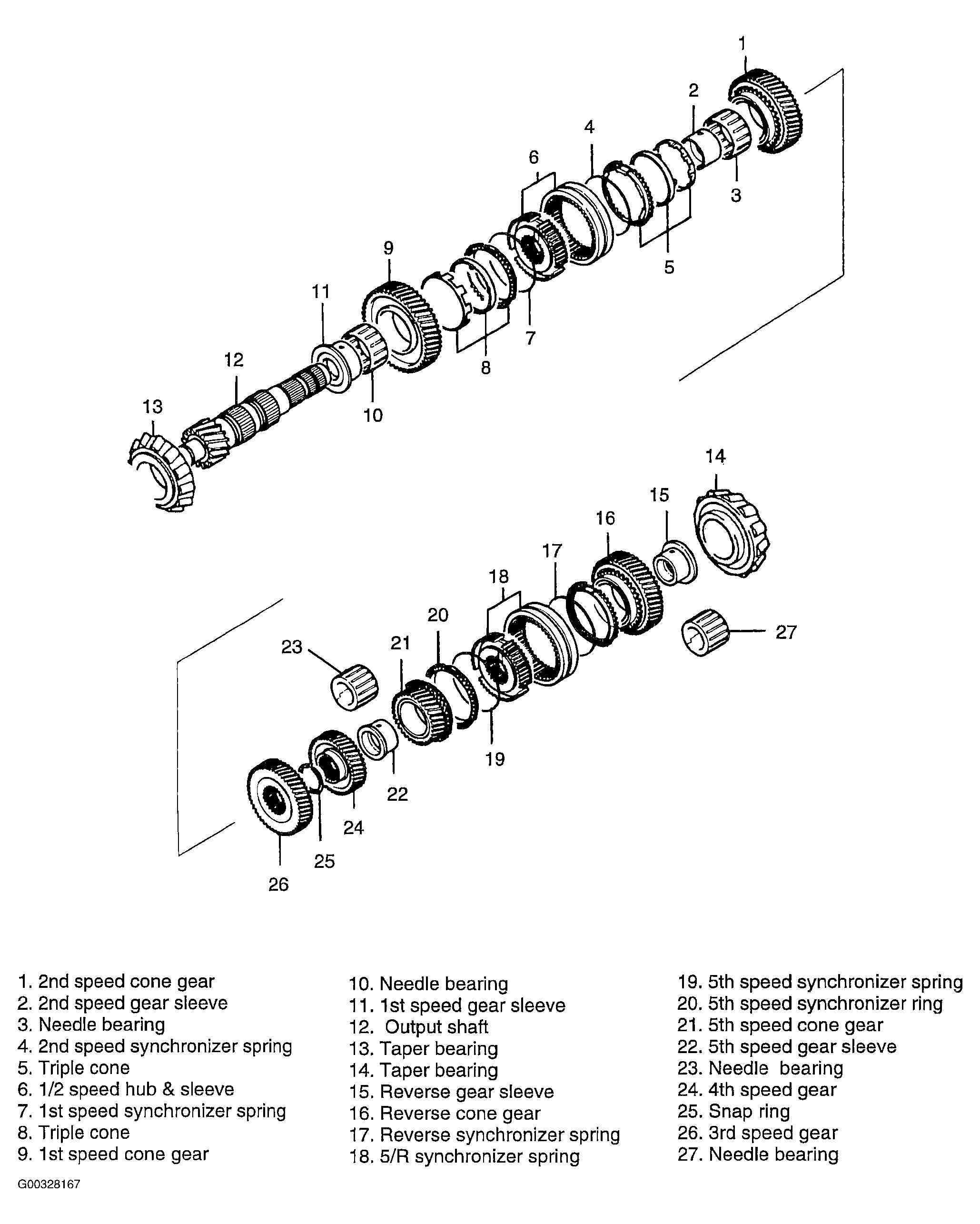

Fig 1: Exploded View Of Output Shaft

G00328167

Courtesy of KIA MOTORS AMERICA, INC.
