Manual Transaxle: Components

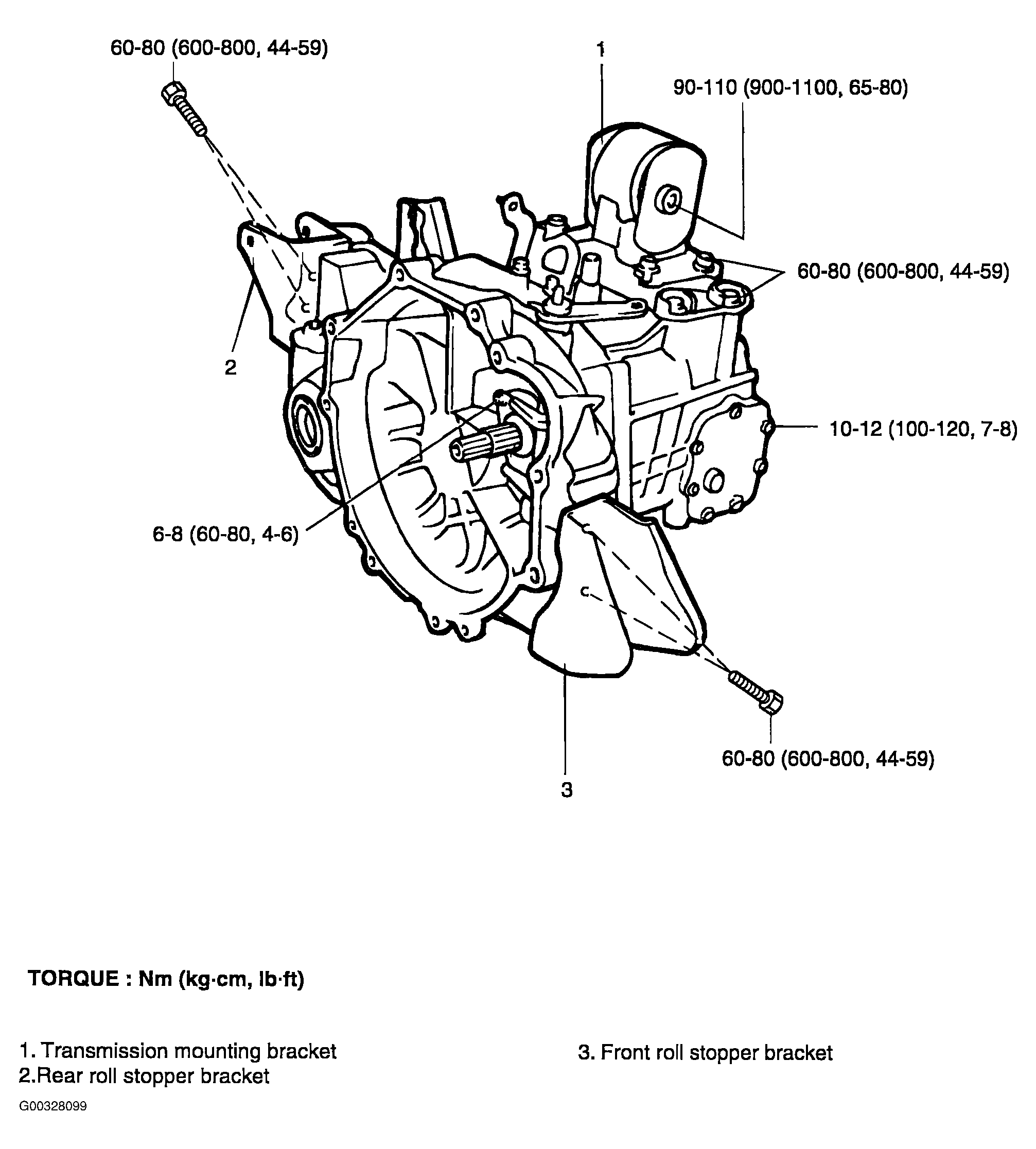

Fig 1: Removing & Installing Manual Transaxle Mounting Brackets
G00328099Courtesy of KIA MOTORS AMERICA, INC.

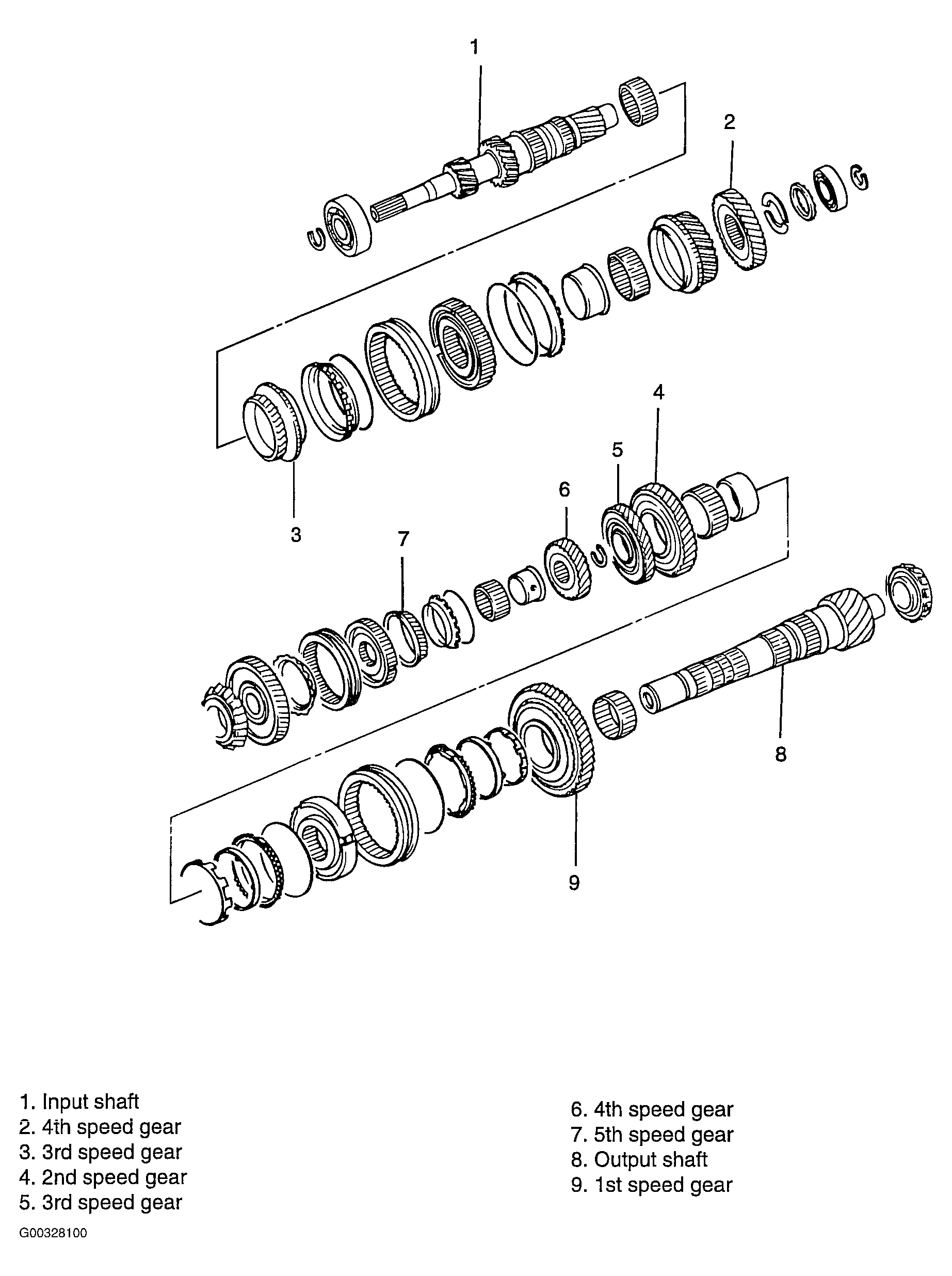

Fig 2: Exploded View Of Manual Transaxle
G00328100Courtesy of KIA MOTORS AMERICA, INC.
