Home >> Kia >> 2004 >> Optima LX, 2.4 6, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Manual Transaxle System >> Manual Transaxle Shift Control >> Components

Manual Transaxle Shift Control: Components

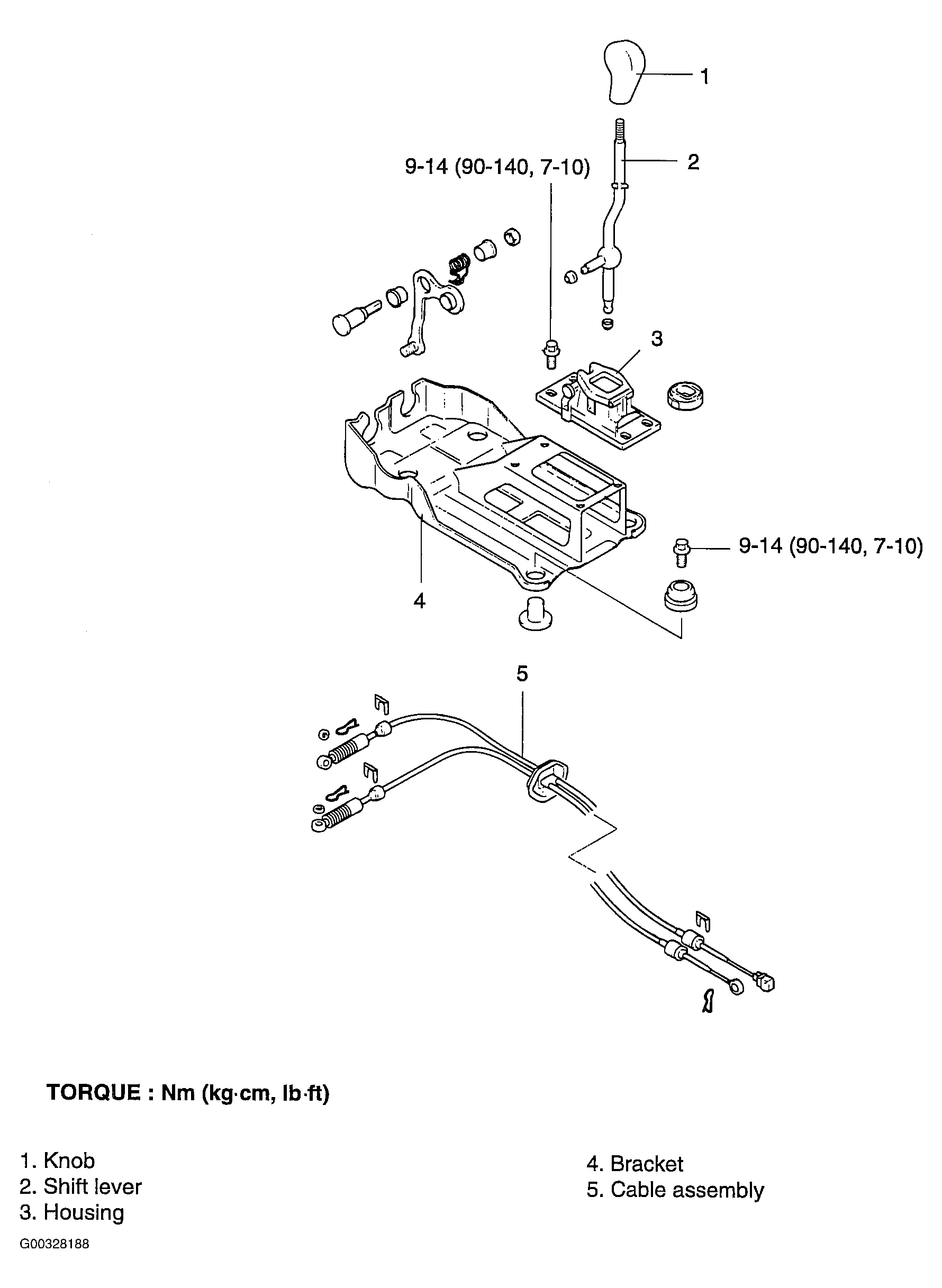

Fig 1: Removing & Installing Manual Transaxle Shaft Control

G00328188

Courtesy of KIA MOTORS AMERICA, INC.
