Manual Transaxle System: Differential: Components

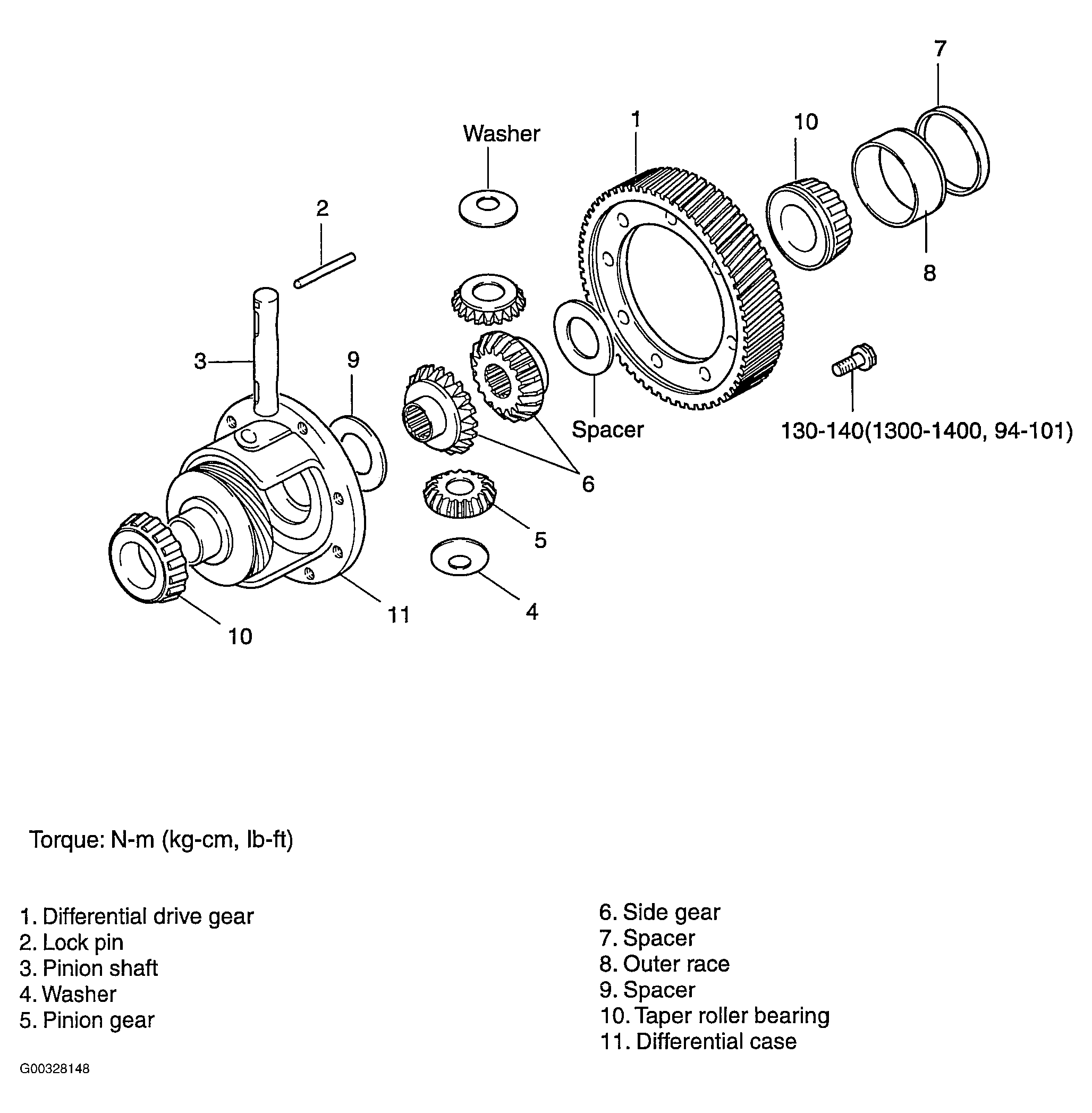

Fig 1: Exploded View OF Differential

G00328148

Courtesy of KIA MOTORS AMERICA, INC.
